WallE3 Wall Track Tuning Review

1 Reply

Posted 22 January 2023

This post is intended to get me synched back up with the current state of play in my numerous wall track tuning exercises. I am using these posts as a memory aid, as my short-term memory sucks these days.

Difference between WallE3_WallTrackTuning_V5 & _V4:

  • V5 uses ‘enums.h’ to eliminate VS2022 intellisense errors
  • V5 RotateToParallelOrientation(): ported in from WallE3_ParallelFind_V1
  • V5 MoveToDesiredLeftDistCm uses Left distance corrected for orientation, but didn’t make change from uint16_t to float (fixed 01/22/23)
  • V5 changed parameter input from Offset, Kp,Ki,Kd to Offset, RunMsec, LoopMsec
  • V5 modified to try ‘pulsed turn’ algorithm.

Difference between WallE3_WallTrackTuning_V4 & _V3:

  • V4 added #define NO_LIDAR
  • V4 changed distance sensor values from uint16_t to float
  • V4 experimented with ‘flip-flopping’ WallTrackSetPoint from -0.2 to +0.2 dep on how close the corrected center distance was to the desired offset (However, I believe this was done incorrectly – the PID engine compared the corrected center distance to WallTrackSetPoint – literally apples to oranges)

So WallE3_WallTrackTuning_V5 seems to be the latest ‘tuning’ implementation.

Comparison of WallE3_WallTrack_Vx files:

WallE3_WallTrack_V2 vs WallE3_WallTrack_V1 (Created: 2/19/2022)

  • V2 moved all inline tracking code into TrackLeft/RightWallOffset() functions (later ported back into V1 – don’t know why)
  • V2 changed all ‘double’ declarations to ‘float’ due to change from Mega2560 to T3.5

WallE3_WallTrack_V3 vs WallE3_WallTrack_V2 (Created: 2/22/2022)

  • V3 Chg left/right/rear dists from mm to cm
  • V3 Concentrated all environmental updates into UpdateAllEnvironmentParameters();
  • V3 No longer using GetOpMode()

WallE3_WallTrack_V4 vs WallE3_WallTrack_V3 (Created: 3/25/2022)

  • V4 Added ‘RollingForwardTurn() function

WallE3_WallTrack_V5 vs WallE3_WallTrack_V4 (Created: 3/25/2022)

  • No real changes between V5 & V4

24 January 2023 Update:

I returned WallE3_WallTrackTuning_V5 to its original configuration, using my custom PIDCalcs() function, using the following modified inputs:

So this is the ‘other’ method – using the modified steering value as the input, and trying to drive the system to zero. Within just a few trials I rapidly homed in on one of the PID triplets I had used before, namely PID(3,0,1). Here’s the raw output, a plot of orientation-corrected distance vs setpoint, and a short video on my 4m straight wall section:

So, the ‘steering value tweaked by offset error’ method works on a straight wall with a PID of (3,0,1). This result is consistent with my 11 January 2023 Update of my ‘WallE3 Wall Tracking Revisited‘ post, which I think was done with WallE3_WallTrackTuning_V5 (too many changes for my poor brain to follow).

Unfortunately, as soon as I put breaks in the wall, the robot could no longer follow it. It runs into the same problems; the robot senses a significant change in distance, starts to turn to minimize the distance, but the distance continues to go in the wrong direction due to the change in the robot’s orientation. This feedback continues until the robot is completely orthogonal to the wall.

26 January 2023 Update:

I went back and reviewed the post that contained the successful 30 October 2022 ‘two 30deg wall breaks’ run, and found that the run was made with the following wall following code:

As can be seen from the above, the line

Compares the orientation-corrected wall distance to the desired offset distance, as opposed to comparing the computed steering value to a desired steering value of zero, with a ‘fudge factor’ of the distance error divided by 10 as shown below:

So, I modified WallE3_WallTrackTuning_V5 to use the above algorithm to see if I could reproduce the successful ‘two breaks’ tracking run.

Well, the answer was “NO” – I couldn’t reproduce the successful ‘two breaks’ tracking run – not even close – grrr!!

So, as kind of a ‘Hail Mary’ move, I went back to WallE3_WallTrack_V2, which I vaguely remember as the source of the successful ‘two break’ run, and tried it without modification. Lo and Behold – IT WORKED! Whew, I was beginning to wonder if maybe (despite having a video) it was all a dream!

So, now I have a baseline – yes!!! Here’s the output and video from a successful ‘two break’ run:

Successful ‘two break’ run with WallE3_WallTrack_V2

And here is the wall tracking code for this run:

And here is just the wall tracking portion of the above function:

From the above, it appears that WallE3_WallTrack_V2 uses a ‘steering value’ setpoint of zero, and also ‘tweaks’ the input to the PID engine using the error between the measured wall distance and the desired wall offset, as shown in the following snippet:

This is very similar to what I was trying to do in WallE3_WallTrackTuning_V5 initially below (copied here from ’24 January 2023 Update:’ above for convenience):

So, the original Tuning_V5 math appears to be identical to the WallTrack_V2 math; both use an offset factor as shown:

WallE3_WallTrackTuning_V5:

WallE3_WallTrack_V2:

Aha! In WallE3_WallTrack_V2 the offset error (in mm) is divided by 1000, but in WallE3_WallTrackTuning_V5 the offset error (in cm) is divided by 10, which still leaves a factor of 10 difference between the two algorithms! I should be dividing the cm offset by 100 – not 10!

28 January 2023 Update:

SUCCESS!!! So I went back to my WallE3_WallTrackTuning_V5 program, and modified it to be the same as WallE3_WallTrack_V2, except using distances in cm instead of mm, and dividing by 100 instead of 10. After the usual number of stupid errors, I got the following successful run on the ‘two break’ wall setup:

WallE3_WallTrackTuning_V5 using ‘tweaked’ steering value. Average LCCorr = 36.9 cm

After running this test a couple more times to assure myself that I wasn’t dreaming, I started to play around with the PID values to see if I could get a bit better performance. The first run (shown above) produced an average offset distance of about 36.9cm. A subsequent run showed an average of 26.4cm. This implies that the steering value ‘tweak’ isn’t really doing much. For instance, this line:

shows that for a corrected distance of 28.13cm, the calculated steerval is (21.4-19.3) /100 = 2.1/100 = 0.021, the ‘offset_factor’ is (40-19.3)/100 = 20.7/100 = 0.207. So, the ‘tweaked’ steerval should be 0.228 and should produce an error term of +0.228 but it is only reporting an error of 0.00!

I added the steerval and the offset_factor to the output telemetry and redid the run with 300,0,0 as before. This time I got

In this case, steerval = (37.7 – 37.1)/100 = +0.06 (pointing slightly away from the wall), tweak = (38.87-40)/100 = -1.13/100 = -0.013, so the total error of +0.0487, giving left/right motor speeds of 60/89, i.e. correcting slightly back toward the wall – oops! It looks like I need to use a slightly smaller divisor for the ‘tweak’ calculation.

I added the divisor for the offset_factor to the parameter list for ‘Tuning_V5’ and redid the run, using ‘100’ to make sure I got the same result as before.

I was able to confirm that using this method with the ‘tweak’ divisor as a parameter I got pretty much the same behavior. Then I started reducing the divisor to see what would happen as the ‘tweak’ became more of a factor in the PID calculation.

For a divisor of 75, we got the following output:

Looking at the line at time 124142, we see:

The steering value is very low (0.02) because the front and rear sensor distances are very close, but because the robot is well inside the intended offset distance of 40cm, the ‘tweak value’ of -0.11 is actually dominant, which drives the robot’s left motors harder than the right ones, which should correct the robot back toward 40cm offset. When we look at the Excel plot, we see:

tweak divisor 75, two break wall.

The plot shows the ‘tweak’ value becoming more negative as the corrected distance becomes smaller relative to the desired offset distance of 40cm, and thus tends to correct the robot back toward the desired offset. At the 12.41sec mark (shown by the vertical line in the above plot) the ‘tweak’ value is -0.11, compared to the steering value of +0.02, so the ‘tweak’ input should dominate the output. With a P of 300, the output with just the steering value would be -300 x 0.02 = -6 resulting in left/right motor speeds of 69/81, steering the robot very slightly toward the wall. However, with the ‘tweak’ value of -0.02 the output is -300 x (0.02 -0.11) = +27 (actually +28), resulting in motor speeds of 103/46, or moderately away from the wall, as desired.

To simply the tuning problem, I changed the wall configuration back to a single straight wall, but started the robot with a 30cm offset (10cm closer than desired) but still parallel (steering value near zero). Here’s the output:

As can be seen from the above plot, the robot starts out at about 32cm, and slowly closes to about 28cm. Simultaneously the ‘tweak’ value goes from about -0.12 to about -0.18 (at 109749 mSec, the black line). The result is the robot starts moving away from the wall, getting to the desired 40cm offset a little over 2sec later (the red line). After this point it maintains about 40cm offset, as desired. The average offset distance from the red line to the end of the run is about 37.5cm – nice!

So it looks like P = 300 and tweak divisor = 75 is a nice starting point.

30 January 2023 Update:

Now that I have both the PID and divisor values as parameters, I plan to make some more ‘straight wall’ runs to see how the robot behaves. My belief is that a slightly lower divisor ratio, and possibly a slightly higher P value will be beneficial – we’ll see

Starting with P = 300 and divisor = 50:

note starting offset of approx 31cm.

This run started with the robot placed roughly parallel to and offset about 32cm from the start of the 4m straight wall section. For the first two seconds the offset increased monotonically to about 38cm, and after that the robot maintained an offset between 35 and 39cm. The average for the ‘maintenance’ portion of the run was approximately 38cm – nice!

PID(350,0,0), divisor = 50:

note starting offset of approx 25cm

As can be seen in the above plot. the robot started off at an offset of approx 27cm, and rapidly (about 1.5sec) moved to an offset of about 38cm. After that it maintained an offset of between 35 and 41cm for the rest of the run for an average of 37.5cm. This is excellent performance, and now I have to wonder just a bit if a separate ‘offset capture’ phase is really required.

Making another run with the same parameters (350,0,0) div 50 but with the robot placed more or less parallel but about 10cm from the wall:

As can be seen from the above raw data and plot, the robot starts out at about 15cm and rapidly (within about 1sec) moves to about 37cm. After that the robot maintains a wall distance between 35 and 40cm, with an average distance of 38.4cm – very nice!

Here’s a short video showing the action:

After this run I decided to try a wall configuration with a single 30º break using the same PID(350,0,0) and div factor (50) as before. The robot was placed nearly parallel with an approx 13cm offset. Here’s the telemetry, the corresponding Excel plot, and a short video.

note starting offset of approx 12cm

After this run I decided to push my luck and try a ‘two break’ wall configuration, again with a very small initial offset. Here’s the raw telemetry output, the corresponding Excel plot, and a short video showing the action.

Black and red lines show approx location of first and second breaks, respectively

From the above it is pretty clear that PID(350,0,0) and ‘tweak’ divisor 50 does a very good job of tracking a straight, one-break or two-break wall at a defined offset distance. In addition it is pretty clear that this configuration does not require a separate ‘offset capture’ function – it does just fine all by itself. I guess I’m a little bummed out that I spent so much time ‘perfecting’ (to the degree that anything I do can be said to be ‘perfect’) the capture function.

23 July 2023 Update:

I have been trying to address the tendency of WallE3 to oscillate back and forth after navigating past the 45º break from the entrance hallway into the kitchen, and I kept getting the feeling I had already solved this problem at least once before. I searched through my older posts and found this one, which clearly shows much better performance than I was now seeing. After carefully perusing the above data, I finally figured out the difference; the above runs used a 50mSec interval, and I was currently using a 100mSec interval – oops!

I changed my current code to 50mSec, and ‘sure nuff’ WallE3’s wall tracking performance around breaks improved dramatically – yay!

This episode proves once again the value of copious documentation – you never know when you will need advice from your former self!

After changing the PID update interval to 50 vs 100 mSec, I made a few runs on my ’45º break’ wall configuration with PID = (350,0,0), (350,0,10), (350,0,20), and (350,0,30). As shown in the following three short videos, both the (350,0,10) and (350,0,20) produced better tracking performance, but the (350,0,30) was definitely inferior.

PID = (350,0,0)
PID = (350,0,10)
PID = (350,0,20)
PID = (350,0,30)

After these tests, I edited WallE3_Complete_V3 to use PID = (350,0,20) with a 50mSec interval.

St Micro VL53L5CX Study – Single Module Parallel Detection?

1 Reply

Posted 15 January 2023

I currently use two 3-element arrays of ST Micro’s VL53L0X ‘time of flight’ distance sensors to determine my robot’s orientation with respect to a nearby wall. In a reply to a recent post of mine on the ST Micro Forum, St Micro guru John Kvam suggested that a single VL53L5CX sensor might take the place of all three VL53L0X’s – wow!

So, I’m currently at a stopping place on my mainline robot work (managed to kill a Teensy 3.5, and new ones are a few days out), I decided to take some time to study how the VL53L5CX module performs in detecting the parallel orientation condition.

John was kind enough to send me some experimental code – albeit with the warning that ‘some study would be required’ to see how it all works, so I’ll be working my way through the example code while also looking through the VL53L5CX datasheet.

I started this adventure by downloading the Sparkfun VL53L5CX library and looking at some of the examples. I was going to buy a couple of the SparkFun breakout boards as I like supporting their library development, but then I saw that I was going to have to pay about $11 (about 1/3 the cost of a single module) just for shipping! Now I know I’ve lost a mental step or two over the last few decades, but even I know that shipping a postage-stamp sized module can be accomplished via USPS for a dollar or two at the most, so I have some issues with a 10X profit margin just for shipping. Talk about ‘hidden fees’! So instead I purchased ST Micro’s eval kit (which contains 2ea modules) from DigiKey for about the price of one Sparkfun module, and shipping was about 1/4 the Sparkfun price.

After receiving the modules, I hooked it up to a Teensy 3.5 as shown below. I wasn’t able to find any information about how to wire this unit to an Arduino (ST’s information assumes you have a NUCLEO board), so I had to kind of piece information together from multiple sources. I used Sparkfun’s schematic (I used 51K instead of 47K resistors) and connected PWREN (power enable) to 3.3V via a 51K.

ST Micro eval board for VL53L5CX ToF distance sensor

Then I loaded Sparkfun’s Example1 code, which simply prints out the values from all 64 zones in a timed loop. Here is some representative output:

Then I set up an experiment with a nice white planar surface (the shoebox my recent B-ball shoes came in) at a distance of about 16cm, and observed the output for +30º, 0º (parallel), and -30º orientation conditions, as shown in the plots and photos below:

Experimental setup
+30deg
parallel
-30deg

For comparison purposes, all three plots above were plotted on the same scale (100-250). Looking at the blue (Series1) and brown (Series8) lines in each of these plots, it appears that in the +30º orientation, all Series1 points are well above all Series8 plots, and in the -30º orientation the opposite is true – all Series8 points are well above all Series1 points. In the parallel case, all eight series points are crammed together between 140 & 160mm. The physical distance between the sensor and my ‘plane’ (shoebox) was measured at about 165mm, pretty close to the sensor values in the parallel case. So, it looks like it should be pretty easy to discern parallel, +30º, and -30º conditions, and probably reasonable to estimate the +/-10º and +/-20º cases as well.

18 January 2023 Update:

Today it occurred to me that I didn’t really know how the VL53L5CX sensor would respond to ‘wall’ angle changes when oriented in the ‘other’ direction (with the sensor oriented vertical to the floor instead of horizontally as it was above). So, I re-oriented the plugboard in my vise with the sensor mounted vertically, and redid the above experiments, with the results as shown below:

+30deg
parallel
-30deg
+30deg
parallel
-30deg

From the above results, it appears that the ‘sensor vertical’ case is more suited to plane orientation measurement than the ‘sensor horizontal’ one. Not sure why this is, but the data is pretty clear.

19 January 2023 Update:

In another email exchange with John Kvam, he wasn’t happy with the fact that the ‘sensor horizontal’ and ‘sensor vertical’ results were different, as the beam transmit/receive geometry is a square pyramid. He thinks some of the beam might be missing the top of the ‘wall’ or hitting the floor, distorting the results (presumably of the ‘horizontal sensor’ results, as the ‘vertical sensor’ results look pretty clean.

So, to address this question, I did another set of runs with the ‘resolution’ parameter set to “4×4” rather than the default “8×8”, and redid the experiments with both ‘horizontal’ and ‘vertical’ sensor orientation, with the following results:

The ‘4×4’ plots above agree quite well with the original set of ‘8×8’ plots, in both shape and magnitude. However, they still show differences between the ‘horizontal’ and ‘vertical’ sensor orientations, which is not what John was expecting.

It occurred to me that the output from my little Sparkfun example is either a 4×4 or 8×8 array of sensor values, so I wasn’t sure what the ‘proper’ way of plotting this data was – I had just accepted Excel’s default which was to plot row by row. As an experiment, I tried switching the rows and columns, whereupon I got the following plots:

So it appears you can get the same result from both horizontal and vertical orientations, but you have to switch the row/column plotting order to get it. Another way to put it would be that you can select which plot behavior you want by selecting the row/column plotting order – interesting!

To recap this point, here’s a typical 4×4 output:

If this is plotted in normal row by row order, you get this plot:

But the same data, plotted in column by column order produces this plot:

Here’s the actual code that produces the output data:

The line

Reads the entire 4×4 or 8×8 array into memory, and then the doubly-indexed loop prints it out. This is all pretty straightforward, except for how the data is interpreted graphically. As the comments in the code indicate, the printout indexing arrangement is intended to flip the data to undo the physical transformation produced by the physical arrangement of sensor’s transmitter and receiver.

My use case, where all I want is the robot’s orientation angle w/r/t a nearby wall, I don’t really care if the data is transposed horizontally or vertically, as long as it stays the same from measurement to measurement. So, I’m beginning to think that I could simply select the array loading and/or plotting arrangement that gives me the ‘sloped line’ version, and derive the wall orientation from the slope of any of the 4 (or 8) lines

21 January 2023 Update:

After getting the SparkFun VL53L5CXA demo to work, I modified it to compare the first and last values from the first line of the 4×4 measurement array, and used the difference between these values to drive a small RC servo with an attached VL53L5CX module. Then I moved my ‘wall’ around to verify that the setup would, in fact, track the wall plane. Here’s the entire program:

And here is a short video showing the results:

In the above, the servo is moved in 10deg steps to attempt to zero out the difference between the first and last distance measurements from the first row of the 4×4 array. The loop timing (500mSec/loop) is very slow and the algorithm is a simple as it gets, but it appears that this very simple algorithm actually works pretty well.

Next steps are to reduce the loop delay, and reduce the servo step size from 10deg to 1deg, or even use a step size proportional to the error term. Here’s another short video showing the tracking behavior with a 30Hz ranging frequency and a slightly more aggressive servo positioning algorithm.

So it appears clear that the VL53L5CX can be used to track a nearby wall, at least in this servo-enabled configuration. The remaining question is, can I substitute my robot’s wheel motors in the place of the above RC servo and get the same sort of ‘parallel tracking’ behavior as shown above. If not, then I might still be able to use a single sensor per side by mounting it on a servo as in the above configuration. The servo-mounted configuration might even be better, as the sensor would remain broadside to the nearby wall, even if the robot wasn’t. This might facilitate better ‘move to desired left/right distance’ performance because no distance compensation for orientation would be required, and better wall offset tracking for the same reason.

20 March 2023 Update:

As one result of my recent ‘field’ tests with ‘WallE3_Complete_V2’ (see this post), I discovered that the maximum distance capability (approximately 120cm) of my VL53L0X sensors was marginal for some of the tracking cases. In particular, when the robot passes an open doorway on the tracking side, it attempts to switch to the ‘other’ wall, if it can find one. However, If the robot is tracking the near wall at a 40cm offset, and the other wall is more than 120cm further away (160cm total), then the robot may or may not ‘see’ the other wall during an ‘open doorway’ event. I could probably address this issue by setting the tracking offset to 50cm vs 40cm, but even that might still be marginal. This problem is exacerbated by any robot orientation changes while tracking, as even a few degrees of ‘off-perpendicular’ orientation could cause the distance to the other wall to fall outside the sensor range – bummer.

The real solution to the above problem is to get a better side-distance sensor, just as I did by changing from the Pulsed Light LIDAR front distance sensor to the Garmin LIDAR-Lite V4/LED one. For the VL53L0X side sensor, the logical choice is the VL53L5CX sensor; not only does the -5CX sensor have more range (200-400cm), but as I was able to demonstrate above, only one sensor per side is required for orientation sensing. The downside is it will require quite a bit of reconfiguration of the second deck, both in terms of hardware and software – ugh!

To confirm the distance specs for the VL53L5CX sensor, I reconstructed the above circuit from my and made some tests to measure the maximum distance, as shown below:

VL53L5CX Distance measuring setup

Unfortunately, the tests showed that I wasn’t really going to get any additional range out of the VL53L5CX unit, and in addition range determination would be complicated by the fact that the field-of-view for the VL53L5CX is much broader than for the VL53L0X. This would mean that when mounted on WallE3’s second deck, the sensor would ‘see’ the floor as well as the target wall, giving skewed readings across the array. I think I would still be able to figure that out (i.e. only look at the SPADS on the bottom or top, whichever corresponds to ‘not floor’) but still a PITA. The big problem though, is that I no longer think the -5CX would be enough better to justify the expense (time and money and aggravation) of changing from the -0X. Bummer!

More to follow, stay tuned

Frank

WallE3 Wall Tracking, Revisited

Leave a reply

Posted 12/23/22

In the last couple of months I have made some significant improvements in WallE3’s capabilities. I started by completely re-doing the compensation algorithms for the seven ST Micro’s VL53L0X time-of-flight distance sensors (two each 3-element side-looking arrays and one rear-looking distance sensor). I followed this with improvements to both the ‘spin turn’ and ‘rolling turn’ features.

Next, I went back through my ‘MoveToDesiredLeft/Right/Front/RearDistCm()’ family of subroutines and made sure they were all working properly now with the much more accurate distance compensation algorithms. One interesting thing that came out of this effort was the realization that shorter measurement intervals (i.e. 50mSec vs 200mSec) produced an unintended side-effect of making ‘Stuck’ detections much more prevalent. This occurs because the appropriate (front or rear) 50-element distance array fills up much faster at 50mSec/measurement than it does at 200mSec/measurement, so identical (or nearly identical measurements will cause a stuck detection earlier (5 measurements/sec means a 50 element array will fill in 10 sec but 20meas/sec fills the array in 2.5sec. When I used 50mSec/meas in the ‘MoveToDesired…()’ routines, the robot would often exit the routine with a ‘stuck’ error code as it slowed down approaching the desired distance condition. These functions do fine with a more coarse time interval (eliminating the ‘stuck’ declarations), so I went back to 200mSec/measurement.

Now I am going to try to incorporate the above improvements into my previous wall track testing program, ‘WallE3_WallTrackTuning_V4’. As usual, I will start by creating ‘WallE3_WallTrackTuning_V5’ as a clone of ‘_V4’ and start making changes from there.

WallE3_WallTrackTuning_V5:

I am going to try and make WallE3_WallTrackTuning_V5 as ‘clean’ as possible, removing as much ‘dead’ code as possible and consolidating things like sensor measurement intervals.

Timing intervals:

Searching through the code for ‘elapsedMillis’ objects, I see the following global declarations:

Then I did a search for “MSEC” all upper case and found:

The front LIDAR sensor starts to generate errors for long distance measurements when the measurement interval falls below 200mSec

The VL53L0X time-of-flight sensors need a ‘measurement time’ of 50mSec or greater. This is handled by the VL53L0X array Teensy, but it means that UpdateAllEnvironmentParameters() shouldn’t be called more frequently than 20HZ.

The MPU6050 can support an update interval of 30mSec or greater, and this time is used for all turning operations.

Telemetry readouts should occur no more than once every 200mSec.

MoveToDesiredFront/Back/Left/RightDistCm()

Based on my recent work on these functions, it looks like PID = (1.5, 0.1, 0.2) will work for all cases, so all I have to do is modify the existing ‘OffsetDistKp/Ki/Kd’ values. Note that in my testing these were parameters to the function call instead of program constants, but now I can go back to just having the desired offset as the only parameter.

So, I copied each of the above functions to WallE3_WallTrackTuning_V5 from WallE3_FrontBackMotionTuning_V1, removed Kp,Ki,Kd from the sig, and replaced all occurrences with OffsetDistKp/Ki/Kd. I also ported the CorrDistForOrient() function, as it is required by the MoveToDesiredLeft/Right() versions

01 January 2023 Update:

After getting the ‘MoveTo…’ functions working, I discovered that ‘RotateToParallelOrientation()’ didn’t work well at all, and in fact found a note from my former self that the function was ‘fatally flawed’ – oops! So, I revisited my ‘WallE3_ParallelFind_V1’ part-task project to see if I could get it to work better now that VL53L0X distances are being reported as float vs integer objects, and after what I hope is much better sensor error compensation. As shown in this post, RotateToParallelOrientation() now works much better, albeit somewhat slowly, with PID = (20,4,0).

Offset Capture with ‘RotateToParallelOrientation’ ‘at end

02 January 2023 Update:

Starting to make some full-up left wall tracking runs, using the updated code from earlier work. In particular, I am trying to see if my older idea about combining an offset-driven steering angle modifier for the PID tracking algorithm will work. The ‘offset_factor’ incorporates the distance error into the reported steering angle, which in turn is used in the PID machine to drive the combined steering angle to 0.

Here’s an early run:

This worked, ‘sorta’. Part of the problem with this run is the robot’s orientation with respect to the wall at the start of the run. This is supposed to be parallel with the wall, but it obviously isn’t, and I don’t know why. Here’s the data from the ‘RotateToParallelOrientation()’ step

This certainly looks good – with a front/rear distance difference of only 0.3cm, and a steering value of 0.02. However, as shown in the following screengrab of the above video, the robot’s orientation just after the parallel find operation is anything but parallel

movie frame grab just after ‘RotateToParallelOrientation()’

I re-instrumented the ‘RotateToParallelOrientation’ function to print out 10 sets of front/back distances directly after completing it’s ‘ParallelFind’ operation, and made another run. The photo below shows the ending orientation, followed by the data

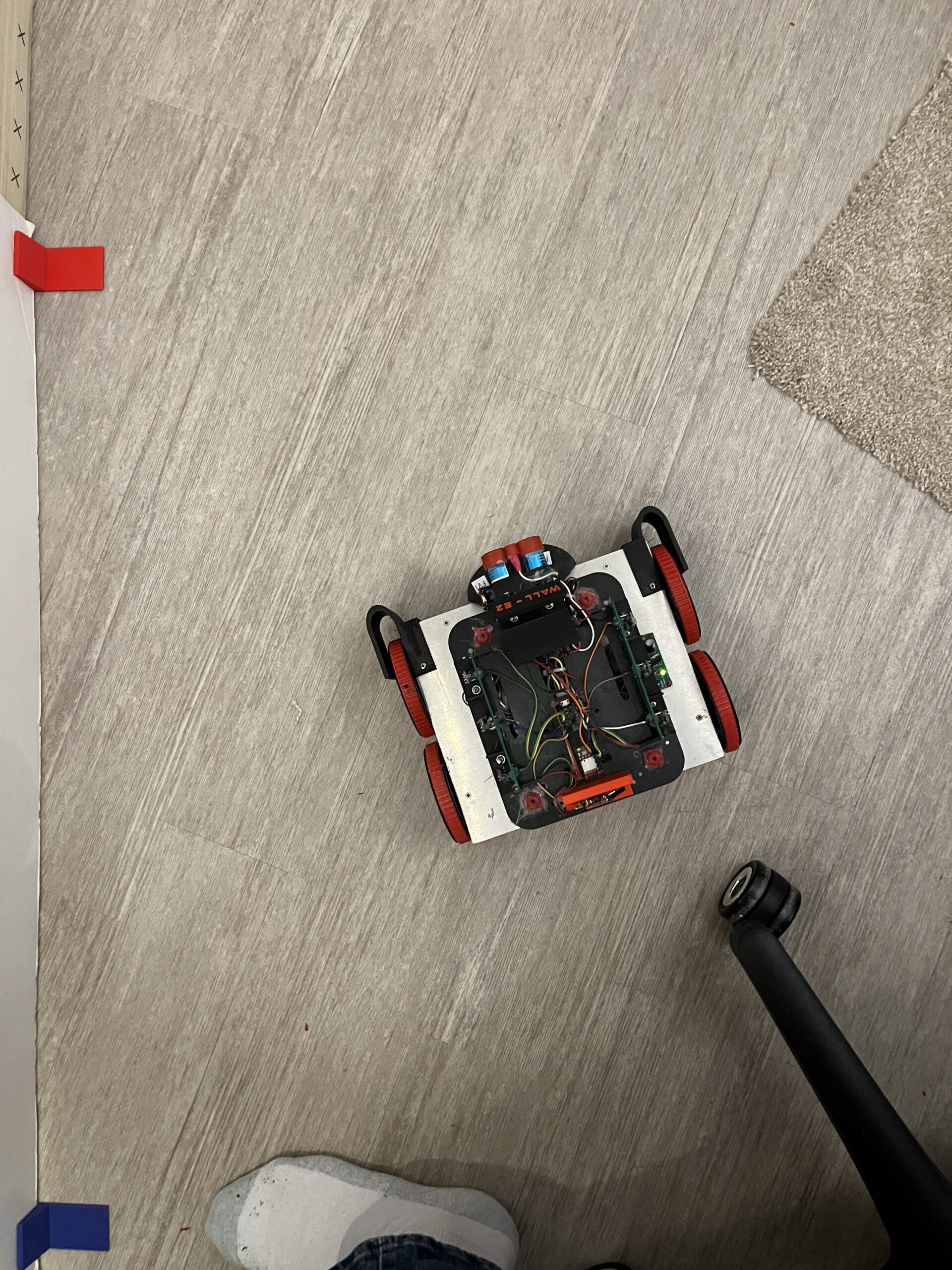

Robot orientation immediately after ‘RotateToParallelOrientation()’

According to the photo, the robot is definitely not oriented parallel to the wall. However, according to the telemetry data, it is (44.4 front, 44.2 rear, steerval = 0.02). Even curioser, the actual physical measurements taken using a tape measure show that the front/rear distances are about 47/44cm, or a steerval of about 0.3! Something is definitely wrong here.

Uncommented the #DISTANCES_ONLY define and re-ran, with the robot position/orientation unchanged:

In the above data, the front distance varies from 42.6 to 44.6cm with an average of 43.7cm, and the rear distance varies from 44.1 to 45.5cm with an average of 44.8cm.

So the program thinks the front/back distances are closer together than the tape measure does (44.5/45.0 vs 47/44). This is a pretty big discrepancy. Rotating the robot to be physically parallel with front/rear distances = 40cm, I get:

When the robot is physically parallel, the reported front distance varies from 38.2 to 39.2cm with an average of 38.8cm, and the rear distance varies from 36.7 to 38.3cm with an average of 37.9. The left steering value varies from 0.02 (38.8/38.1) to 0.14 (38.9/37.5) with an average of 0.09.

Well, it looks like the average reported distances and steering values are pretty close to reality, so maybe my original calibration efforts aren’t entirely screwed up. However, it is abundantly clear at this point that my current ‘RotateToParallelOrientation()’ algorithm isn’t reliable, due to very noisy distance value measurements.

01/09/23 Update:

After getting ‘RotateToParallelOrientation()’ working better (now it just uses the array front/rear distance measurements to calculate the off-parallel angle, and then does a ‘SpinTurn’ by that amount), I resumed the effort (see the 02 January Update above) trying to determine if my older algorithm for combining the raw steering value with an ‘offset adjustment factor’ based on the robot’s distance from the desired offset distance would now work better given the improvements I have made in VL53L0X sensor error compensation and off-parallel distance measurement compensation.

As it turns out, the answer seems to be ‘no’. After a multitude of runs with my test wall set up for two 30-45deg ‘breaks’, I couldn’t find any set of PID values that would allow the robot to track the wall – it always either took off for parts unknown, or crashed into the wall at some point.

So, back to the original algorithm of using the wall offset distance directly in the PID engine.

11 January 2023 Update:

I’m confused – not an unusual state for me to be in – but still…..

After all the above improvements, I still was unable to produce reasonable tracking performance using either the steering value or the offset distance as the parameter to be controlled. And, even more confusing, I have an entire post dedicated to demonstrating successful wall tracking using the orientation-angle-corrected distance to the wall as the input to the PID engine, with the desired wall offset as the setpoint, as shown here:

With this algorithm, I settled on PID(3,0,1) as the best parameter set, with the result shown in this short video (copied from the above post):

Wall tracking using corrected distance measure as input, and desired offset as the set-point

And then, I have another post demonstrating that using the steering value as input and 0 as the setpoint also works, as shown in this short video with PID(300,0,300)

Right-side wall tracking using steering value as input with PID = (300,0,300)

Here’s the data and short video from a run on my longer ‘4 meter’ test range with two 30º breaks:

Using steerval only. Note monotonically decreasing distance

Even more confusing, it appears that the earlier (September 2021) trial using the steering value input also used the measured center distance to modulate the steering value so the robot would tend to track the steering value but also trend toward the desired wall offset distance. Here’s the tracking code from FourWD_WallTrackTest_V3:

In the above code snippet, ‘Lidar_RightCenter’ is in mm, so WALL_OFFSET_TGTDIST_CM must be multiplied by 10 to match units.

At this point I am thoroughly confused, (but hopeful, since I have evidence from an earlier version of myself that something (actually two somethings) actually work. I believe the next step is to see if I can use my WallE3_WallTrackTuning_V5 code to consolidate everything down to something that works.

12 January 2023 Update:

I went back and loaded up WallE3_WallTrack_V2.ino and ran it on my 4m ‘range’ with two 30º breaks. The robot tracked amazingly well, as shown in the following telemetry output and Excel plot

WallE3_WallTrack_V2’s tracking algorithm uses the difference between the desired and measured offset distances to ‘tweak’ the steering value, as discussed above, so clearly this works – or at least doesn’t screw things up too badly. In the above telemetry output, the ‘Steer’ column is the steering value after the offset distance adjustment shown here

So at the point where the robot hit the minimum center distance of about 154mm, the steering value adjustment would be (154-400)/1000 = -0.246. The total steering value term at this point was 0.23, which means the ‘raw’ steering value was +0.016 and the offset distance error term accounted for ~97% of the total. This is good evidence that including the the distance offset term works.

My new new new plan is to focus on my October 2022 post that uses the orientation angle corrected offset distance as the input to the PID engine, and see if I can incorporate this, along with all my recent updates/bugfixes into WallE3_WallTrackTuning_V5
