Posted 18 July 2020

In my continuing effort to update Wall-E2’s superpowers, I have been trying to replace the HC-SR04 ‘ping’ sensors with ST Microelectronics VL53L0X Time-of-Flight (ToF)  sensors, as implemented by the popular GY530 modules available on eBay.

First, I got a 3-element array working and demonstrated effective parallel-heading determination and wall tracking, as described in this post.

Next, I added a second 3-element array on the other side of the robot, but I have been running into trouble getting both arrays to work properly at the same time.  Somehow there seems to be some interaction between the two arrays that I can’t seem to nail down.

• I have determined that all six elements respond properly when operated individually or as a member of a 3-element array
• Adding a 4th element to the array causes one or more of the first three elements to respond with an out-of-range measurement
• Adding 2.2K pullups to the I2C bus makes the problem worse, not better.  After some investigation, I discovered that the GY530 module already has 10K pullups included, so three modules on the bus would reduce the pullups to 3.3K, and four would already reduce the value to 2.5K.  Adding a 2.2K in parallel with 3.3 or 2.5K would drive the value down to around 1.2-1.5K.  However, that did lead me to my next idea – using separate I2C busses for the left and right 3-element arrays.
• Moved the left-hand 3-element array from the Wire1 I2C bus to the Wire2 I2C bus.  Now the 10K pullups shouldn’t be an issue, as I had already demonstrated proper operation of a 3-element array on the Wire1 I2C bus.  Unfortunately, this exhibited similar problems; When running all six elements, all three left-side elements measure properly, but only one right-side element produces reasonable values – the other two give nonsense readings.

Here’s a photo of the top deck of my autonomous wall-following robot, with the two 3-element arrays installed on the Wire1 and Wire2 I2C busses of a Teensy 3.5.

And here is the schematic for the split-bus configuration:

A typical output sequence follows:  The first column is milliseconds since program start, and the following 6 columns are the front, center, and rear sensor measurements for the right & left arrays, respectively.

In the above, the data from the first two sensors on the right side is invalid, but all the rest show ‘real’ values.

If the left-side array is disconnected (unplugged) from the Wire2 bus and the program modified to not initialize/measure the left-side array, then the right-side array reads normally, as shown below

If the right-side array is disconnected (unplugged) from the Wire1 bus and the program modified to not initialize/measure the right-side array, then the left-side array reads normally, as shown below

Here’s the code being used to drive just the left-side VL53L0X array (right-side array code commented out and the right-side array physically disconnected from the Teensy 3.5):

And the same program, with the left-side array commented out

So, it appears that there is some sort of interaction between the Wire1 & Wire2 I2C busses on the Teensy 3.5.

22 July 2020 Update:

Based on some feedback from the Teensy forum, I added some code to my program to verify that each VL53L0X sensor I2C address had been set properly in the setup code.  When I did this, I got results that were more than a little mystifying; Initialization of the 3 sensors on the Wire1 bus all reported success, but the I2C scanning code reported a different story, as shown below:

The three sensors on the Wire1 bus were supposed to wind up at 2A, 2B & 2C, but the scanner showed them at 29 and 2C, with one of them missing entirely – wow!

So, I decided to go back to basics.  I modified my original triple VL53L0X demo program to include a I2C bus scan to verify the actual addresses of the sensors, as follows:

And got the following output:

As shown above, the VL53L0X sensors got programmed correctly, and appear to operate correctly as well.

Then I created a new program identical to the above, except for using the Wire2 bus instead of the Wire 1 bus, using different I2C addresses and different XSHUT pin assignments for programming the sensors.

When I ran this program, I got the following output:

Then I modified my original hex-sensor program to initialize one array at a time, with a I2C bus scan in between, as follows:

When I ran this program, I got the following output:

So it seems pretty clear that there is something going on with the Teensy 3.5 that doesn’t like it when I try to run both Wire1 & Wire2 buses at the same time.

As additional background data, the original impetus for splitting the six sensors between two I2C buses was my discovery that adding the 4th through 6th sensors on the Wire1 bus caused a similar problem to the one described here; clearly bad readings from the 1st & second sensors, while readings from later ones were fine.  I don’t know if these issues are related, but something is happening for sure.

23 July 2020 Update:

I’m frustrated at the lack of response from both the Teensy and ST Micro support forums on this issue.  The Teensy guys are trying to help, but nobody wants to look at the elephant in the room – the fact that all six VL53L0X units work fine when their respective I2C bus is the only one operating, but not when both buses are in operation.  The ST Micro guys just don’t answer at all.

I went back and modified my program to print out as many of the detailed measurement parameters as I could find for each sensor, in an effort to gain some understanding about what is happening, and got the following output:

This output style is much harder to read, but is also much more complete. Each line (distances, signal rate, SpadCount, and RangeStatus) has six entries – one for each of the six sensors.  The first three entries are sensors 1-3 on Teensy Wire1, and the remaining three are sensors 4-6 on Teensy Wire2.  As the data shows, sensors 1 & 2 always have bogus results, while sensors 3-6 have what appears to be valid data, although I’m not competent to say anything more than “the distance values for sensors 3-6 track reality, while the ones for sensors 1-2 do not”.

Then I modified the program yet again to just use sensors 1-3 on Teensy Wire1 I2C bus, without changing any hardware (leaving sensors 4-6 still attached to Teensy Wire2, but not initializing or addressing them in any way, and got the following output:

Now the parameters for sensors 1-3 all look real, and of course all the parameters for sensors 4-6 are zeroed out.

Then I modified the program to just initialize and access sensors 4-6 on Teensy Wire2

Now it is clear that the data for sensors 1-3 (Teensy Wire1) are all zeroes, and the data for sensors 4-6 (Teensy Wire2) are valid.  Again, this is with no hardware changes at all; all sensors are still powered and connected to their respective I2C buses.

29 July 2020 Update:

Still working the multiple VL53L0X issue.  After getting nowhere with the Teensy and ST Micro forums, I decided to try a different tack.  I decided to try controlling all six VL53L0X sensors using the single I2C bus on an Arduino Mega.  I reasoned that if I could get them all to play using a Mega, this would lend credence to my theory that something funny is going on with the Teensy 3.5 auxiliary I2C buses.

Unfortunately, I immediately ran into problems getting multiple sensors to work using the Arduino Mega.  At first I thought this was due to the fact that the Mega is a 5V controller and so I needed a level shifter setup on the I2C bus between the Mega and the VL53L0X sensors, but that didn’t change anything.  Then, after a more thorough look at the VL53L0X schematic and documentation I discovered that the real problem was that while the I2C bus lines have internal level shifters already implemented on the module, the XSHUT & GPIO lines do not.  This meant that I had been driving the XSHUT line of each of my attached sensors well over the do-not-exceed level — oops!

At this point I was starting to wonder if I had damaged the sensors’ XSHUT lines, thereby making any further diagnostic attempts with these sensors fruitless.  In addition, I was starting to wonder if I hadn’t also given myself problems by using ‘no-name’ modules – cheap, but maybe worth every penny?  I also had read some posts that indicated that the Adafruit VL53L0X driver library might have some problems, so maybe I had a trifecta going – cheap no-name modules, potentially damaged by my abuse of the XSHUT lines, being driven by a questionable library – yikes!

So, I started over; I acquired some Pololu VL53L0X modules, installed their Arduino driver library, and used their ‘Single’ code example to verify basic operation with a single VL53L0X sensor connected to an Arduino Mega controller.  Then I added in the multi-sensor initialization code, being careful to simply switch the XSHUT lines from output (for outputting a LOW signal) to input (for ‘outputting’ a HIGH signal by allowing the onboard 47K pullup to take over) for XSHUT line management.

With the above setup I have been able to demonstrate a working 3-sensor setup using an Arduino Mega controller.  When my remaining Pololu VL53L0X modules arrive later this week, I hope to show that I can run (at least) six Pololu VL53L0X sensors on a single I2C bus.  If I can do that, then I’ll be in a position to make some more waves on the Teensy forum (I hope).

By the way, one of the side-effects of this effort was a reply from John Kvam mentioning that ST Micro makes an Arduino compatible 3.3V 32-bit microcontroller called the ST32 (also known as the ‘blue pill’ for it’s PCB color).  This is pretty capable device, with the single drawback that it doesn’t come with an Arduino bootloader installed, meaning it can’t be directly programmed via its USB-C connector.  Instead, one has to use a FTDI device (like the CKDevices FTDI Pro or the Sparkfun FTDI breakout board.  However, there are plenty of “How To’s” out there describing how a bootloader can be loaded into flash memory, after which you can program it just like any other Arduino device – pretty cool!  Anyway, I ordered a couple of these boards to play with the next time I need something Arduino-ish but not as fast (or expensive) as a Teensy.

31 July 2020 Update:

Success!  I finally got more than three VL53L0X sensors working on the same I2C bus using an Arduino controller!  However, I’m embarrassed to say that in the process, I discovered a hidden broken ground wire in one of my two I2C bus daisy chains, and this may have been causing the symptoms I was seeing with the Teensy 2-bus configuration – don’t know yet.

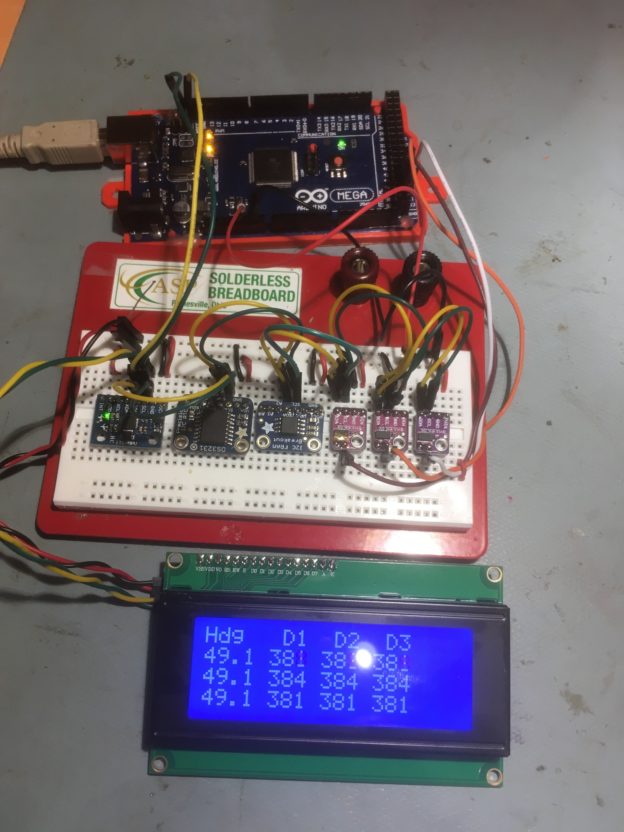

In any case, after repairing the wire break I got a set of six VL53L0X sensors working, consisting of the three Pololu modules I just got in, plus three of the older GY530 modules I was using on earlier Teensy-based experiments.  After that, I was able to demonstrate proper operation of the two 3-sensor arrays from my Wall-E2 robot, as shown in the following photo and Excel plot.

01 August 2020 Update:

Well, it is officially time to eat crow.  After all the whooping and hollering I’ve done, it turns out the entire problem was a hidden ground wire break in I2C daisy-chain cable attached to the Teensy 3.5’s Wire2 I2C bus.  After repairing the break, I can now demonstrate operation of six VL53L0X sensors on two different I2C buses on the Teensy 3.5, as shown in photo and Excel plot below.

Now that this saga has been thankfully resolved, I can get back to the original project of integrating these two sensor arrays onto Wall-E2, my autonomous wall-following robot.

August 08, 2020 Update:

I believe I have finally completed the effort to integrate the VL53L0X sensor arrays onto Wall-E2, my autonomous wall-following robot.  Here’s the physical setup

Note that the USB cable to the Teensy 3.5 is temporary, just for testing.  To verify proper operation, I wrote a small program for the Mega 2560 main controller containing only the code  from the main FourWD_WallE2_V5.ino required to retrieve sensor values from the Teensy 3.5, and used this program to verify and debug the Teensy 3.5 program. As the two Excel plots below show, the main Mega 2560 controller can now retrieve distance data from all six VL53L0X sensors at once.

There are some very small differences in these two plots, which I attribute to the fact that the Teensy measurement timing and the Mega 2560 retrieval timing are asynchronous, so the Mega may be retrieving some new and some ‘old’ (in the sense that it might be 100 mSec older than the rest) measurement data.  This is insignificant operationally, and wouldn’t be evident unless this sort of simultaneous local/remote reporting was done.

A minor side note; I wound up using the GY530 ‘no name’ sensors rather than the Pololu ones because they were a) smaller, and b) already mounted on the two custom brackets I printed for them.  The Pololu sensors (along with a whole bunch of GY530’s that finally arrived from Ali Express) went into my ‘Sensors’ parts bin for the next project.  If anyone needs VL53L0X sensors, let me know! 😉

Stay tuned,

Frank
