Dewalt DWS713 Miter Saw Cut Line Shadow Mod

My wife got me a brand-new Dewalt DWS713 Miter Saw for Christmas, and boy is it nice! Sure beats the heck out of my old plastic miter box, that’s for sure. After playing with it for a while and making some gorgeous cuts, I decided I wanted to try my hand at adding a cut line shadow modification.

After doing some web research, I found this post, of a guy who added a cut line shadow system to Bosch miter saw, and this Thingiverse design for a LED mounting shroud. So, I ordered an LED lamp similar to the one used in the video, and downloaded the Thingiverse shroud design so I could print one here on my 3D printer.

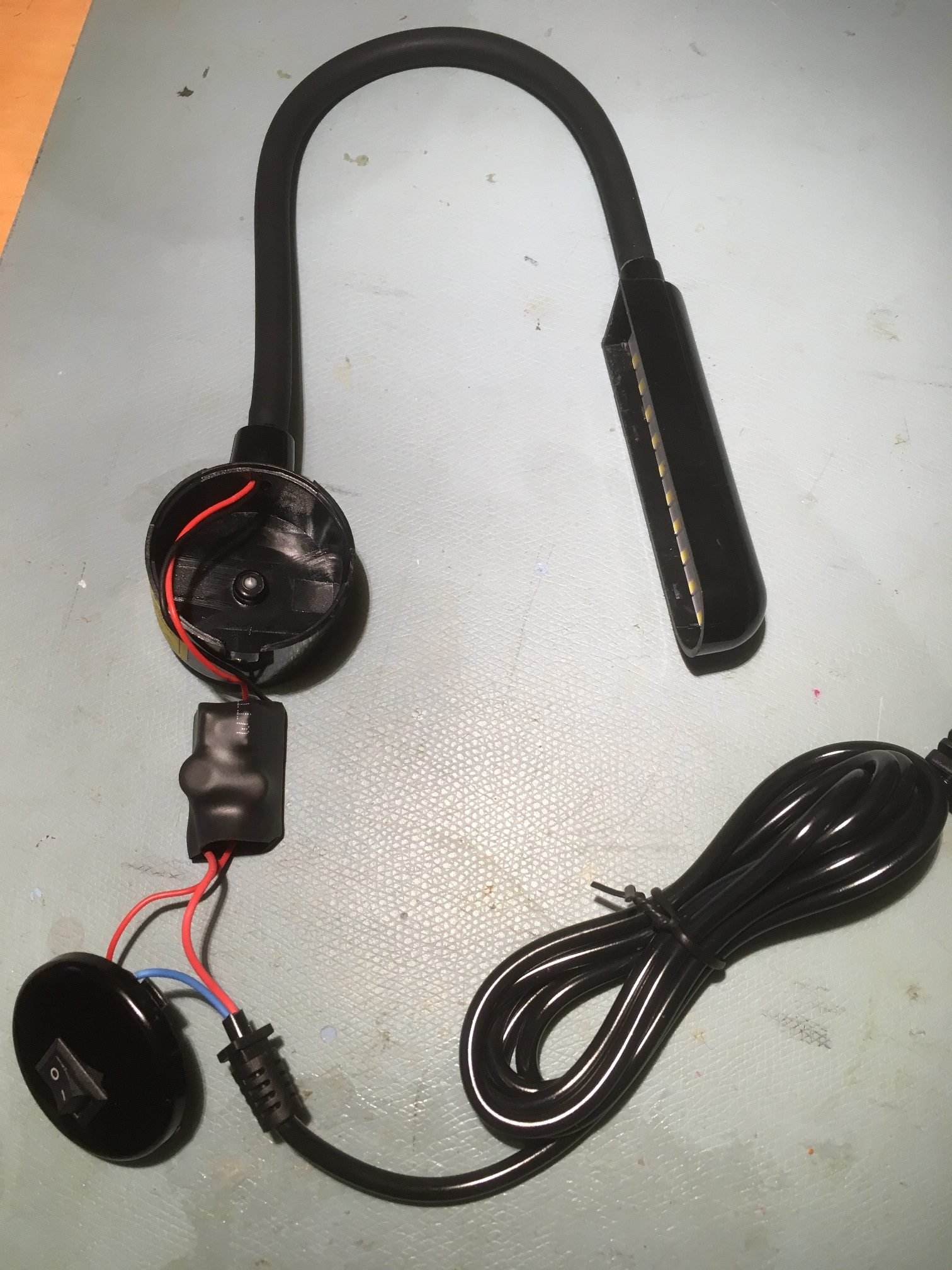

The LED lamp comes with a small cylindrical control module containing an ON/OFF switch and an AC/CD converter, as shown here

ON/OFF switch and AC/DC converter are housed in the magnetic base

As described in the video showing how to mount a cut line shadow LED to a Bosch miter saw, the gooseneck part of the LED lamp wasn’t long enough to allow full travel of the blade guard. So I cut the gooseneck away from the magnetic base, and fabricated a new housing for the AC/DC converter and (because I managed to screw up the original one) a new, larger ON/OFF switch.

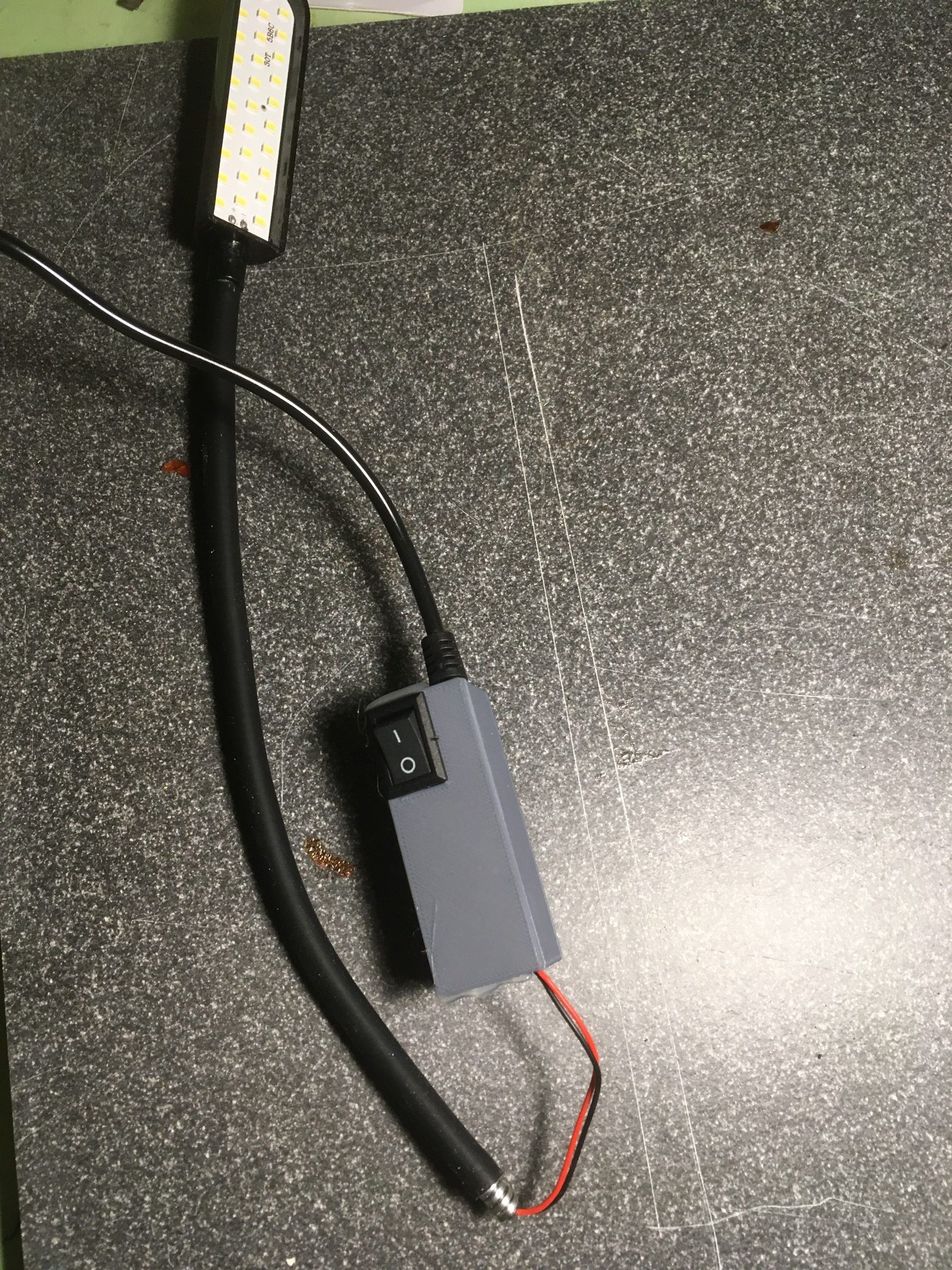

3D printed enclosure for ON/OFF switch and AC/DC converter.

With the added length gained by replacing the original cylindrical enclosure, I was able to mount the LED at the front end of the blade housing and still allow full travel of the retractable blade guard. However, I discovered that I needed to reduce the height of the LED lamp housing slightly, to allow more clearance for the retractable blade guard travel, as shown

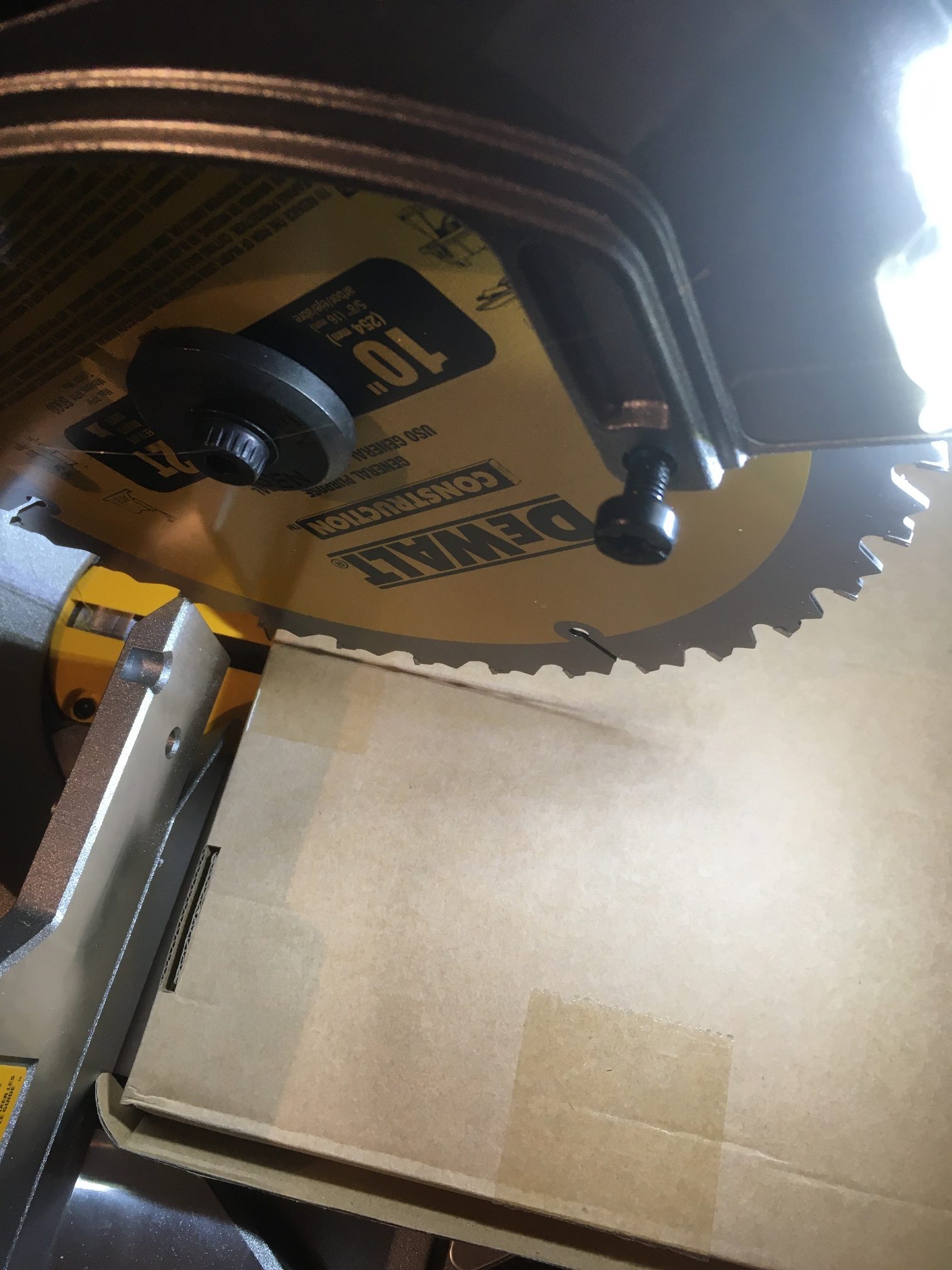

Here is a photo of the LED assembly temporarily attached to the miter saw, with the retractable blade guard removed

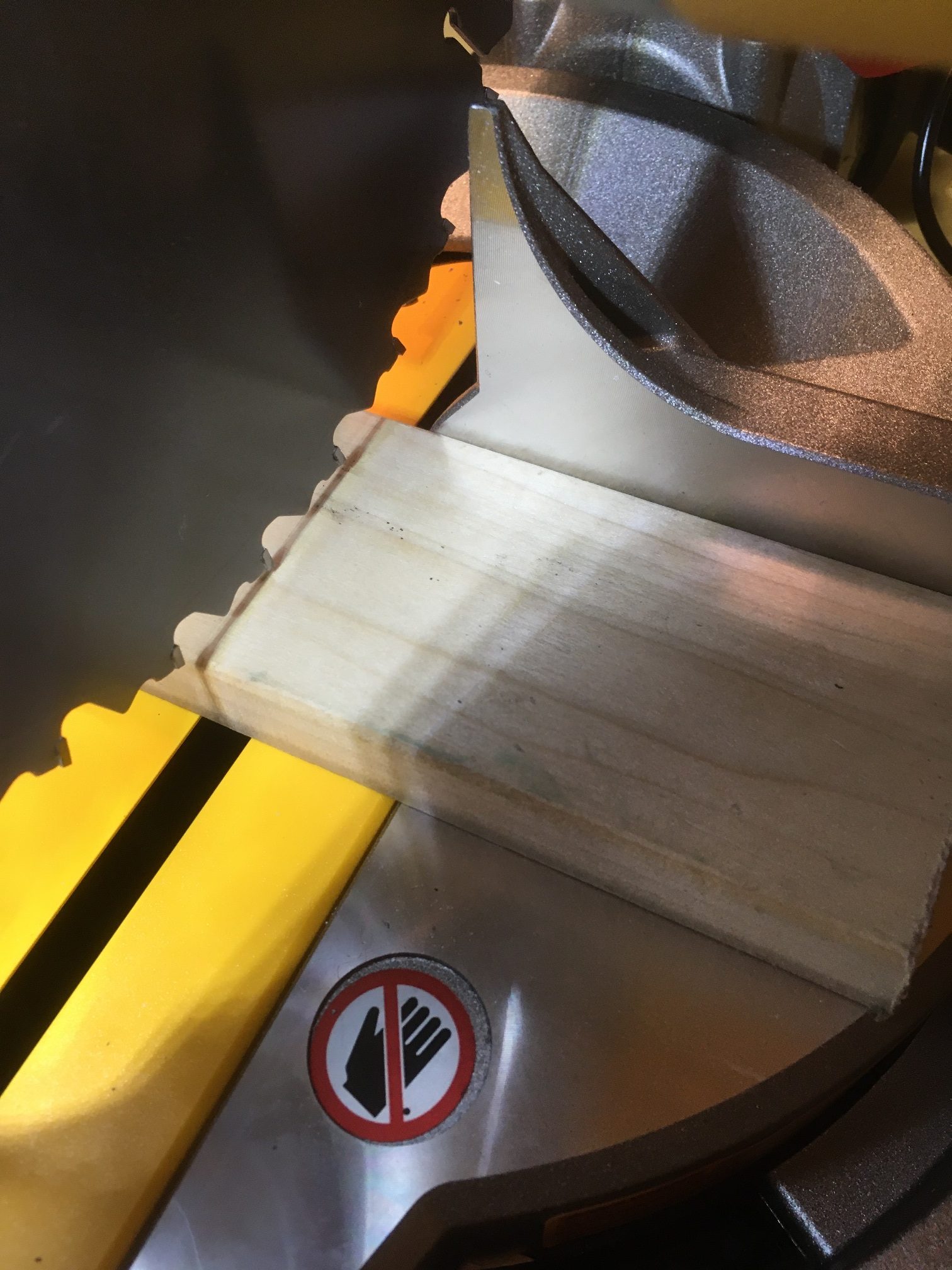

This temporary setup produced a nice cut line shadow as shown below

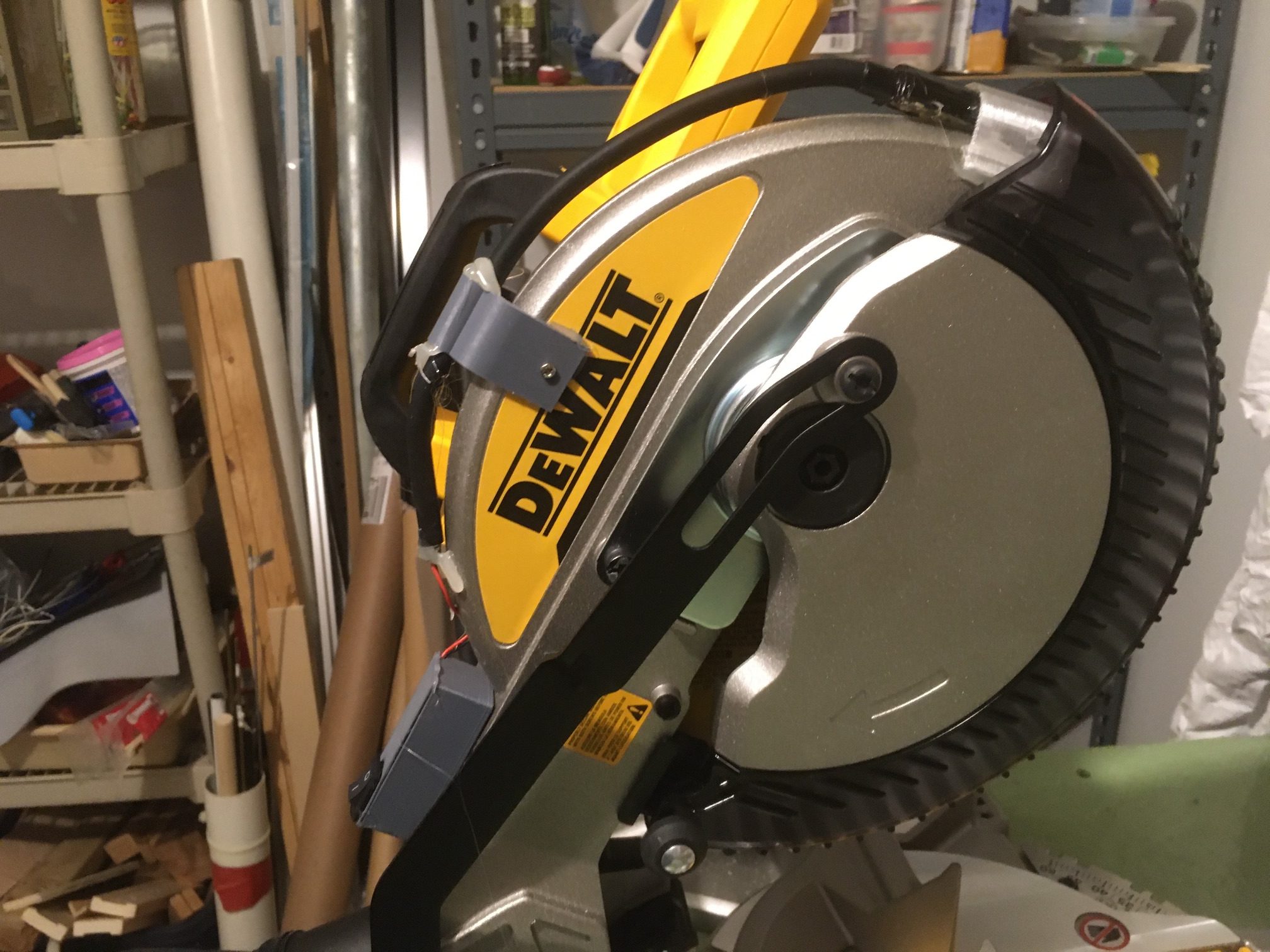

The photo below shows the completed assembly, with the gooseneck attached to the blade housing via a 3D-printed gooseneck retainer clip and two 3mm machine screws (the blade housing was drilled & tapped for 3mm), and the control housing mounted to the rear of the blade housing.

The final product seems to work fairly well, as demonstrated in the following photo

Here is a photo of the 3D-printed gooseneck retainer clip

I used hot glue to temporarily attach the clip to the blade housing, and then drilled through the clip and into the housing with a 3mm tap drill. Then I removed the clip, tapped the housing for a 3mm screw, and then re-drilled the clip for a 3mm clearance hole, then re-assembled using 2ea 3mm x 6mm machine screws.

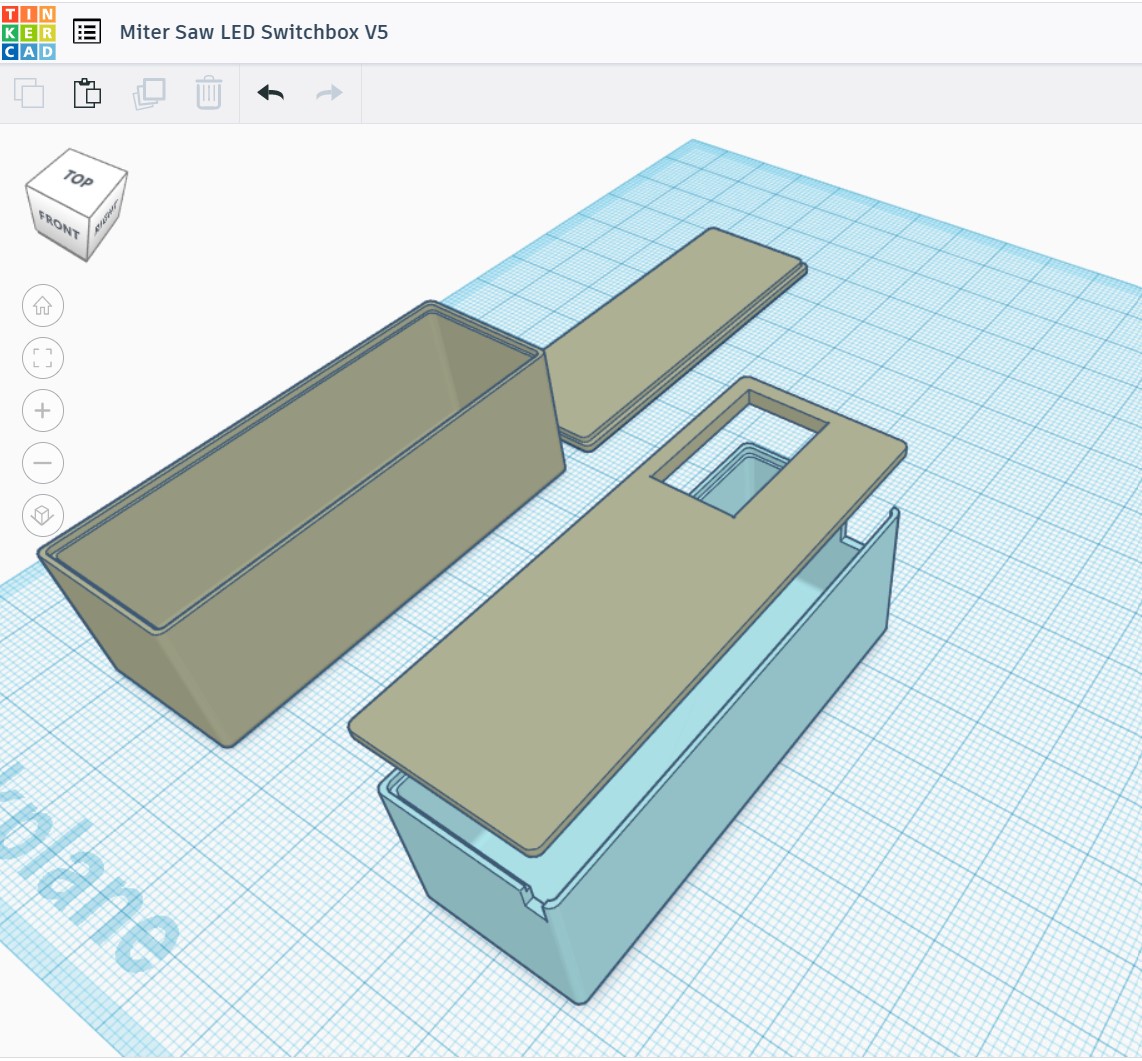

Here is a screenshot showing the rounded-corner enclosure I designed to hold the ON/OFF switch and the AC/DC converter

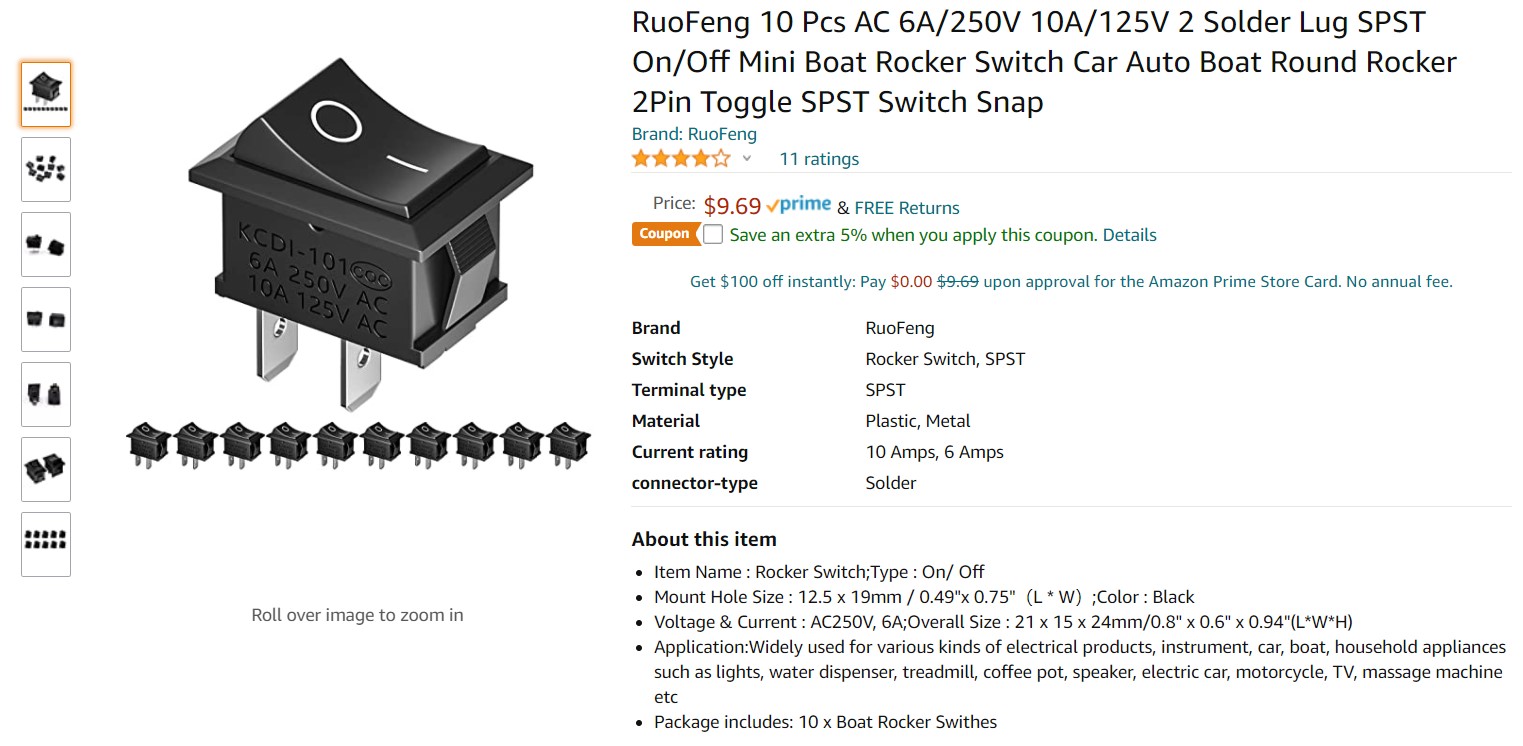

Because I managed to screw up the original ON/OFF switch, I used this switch I had in my parts bin, from an earlier project

All the 3-D printable parts are on Thingiverse here.

27 October 2021 Update:

While changing blades the other day, I noticed that the front LED lamp holder had come loose from the top of the blade guard – the hot glue attachment of the holder had detached from the metal. So, I printed up a new lamp holder with longer sides and this time attached it with 3mm screws to 3mm tapped holes in the blade guard, as shown in the following photo:

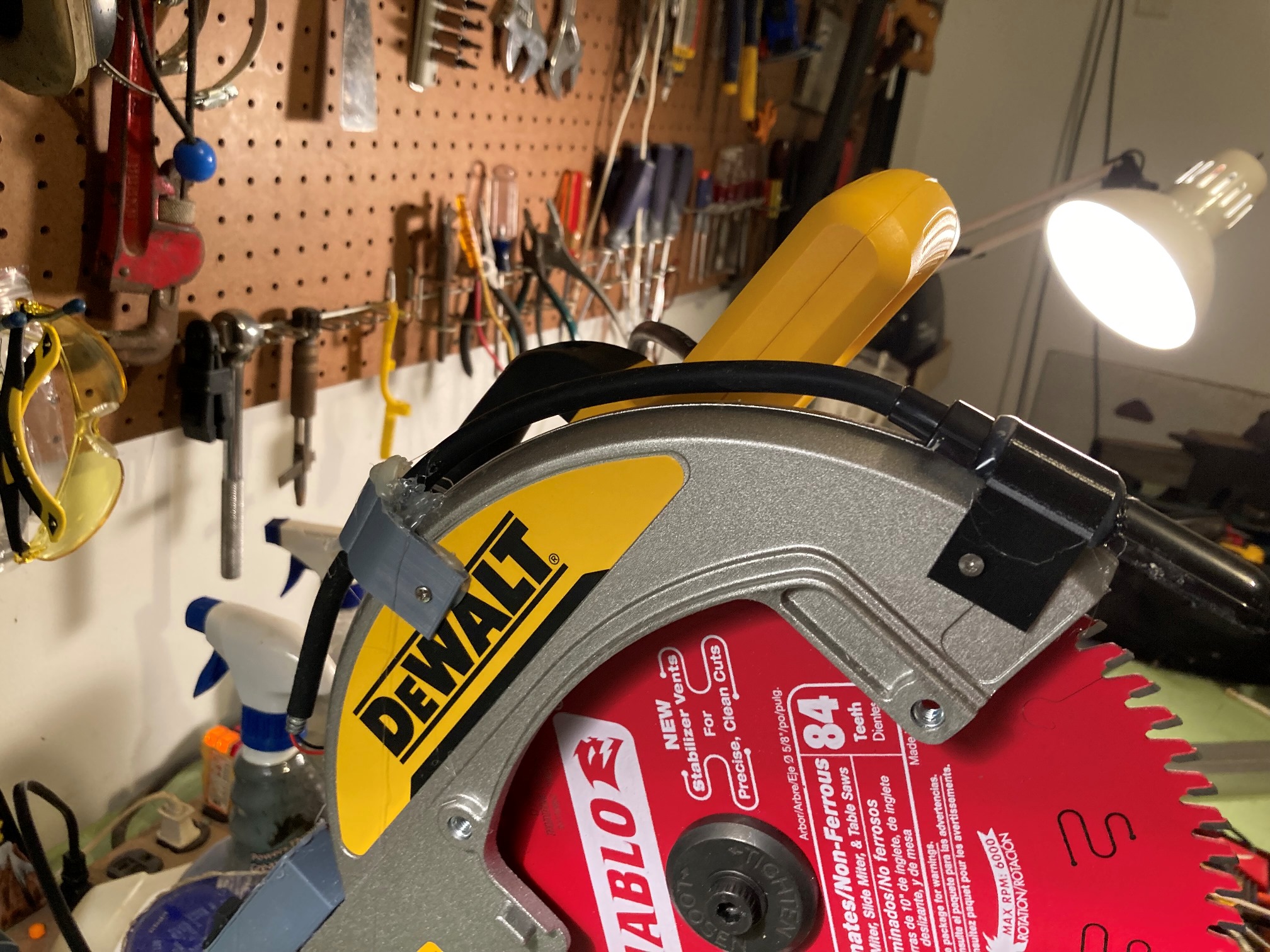

New front LED lamp hold, this time attached with two 3mm screws

Basketball Shot Make/Miss Recorder

Posted 27 November 2020

After my recent right shoulder surgery, I have been looking for ways to get back into BBall shooting practice. However, the combination of Covid-19 lockdowns and the oncoming winter weather has drastically reduced my options for shooting practice. Not to be dissuaded from BBall practice, I figured out a way of moving my practice area from my driveway outside the garage inside the garage. As it turns out, our earth-sheltered house boasts an attached earth-sheltered two-car garage with a 12′ interior ceiling and no vertical support beams (I insisted on this in the design, and paid the extra cost, knowing from prior experience that interior support columns in a two-car garage was a bad thing.

Still not quite perfect, as even a 12′ ceiling isn’t quite enough room for a 10′ high BBall rim and enough headroom for practical shooting practice. So, I decided to mount my new practice rim at 9′ vs 10′, leaving 3′ of headroom. Obviously this isn’t ideal, but I figured a lot of practice on a 9′ rim was much better than no practice on a 10′ rim ;-).

As I started to shoot in my new practice gym, I realized I also now needed a way to record hits and misses so I could keep a running ‘made shots’ percentage. My short-term memory degradation due to being an old fart has made it almost impossible to do this in my head, and besides, what could be better than being able to combine my love of BBall, my love of programming, and my love for hardware/software projects? That’s at least a trifecta if not a quadfecta (and that is actually a word!). So, I programmed up a Windows program in C# to display ‘Hits’, ‘Attempts’, and ‘Hit Percentage’, and used an Arduino microcontroller to interface to two push-buttons – one for a hit, and the other for a miss. The arduino talks to the Windows program via a serial port over the USB cable, and the Windows program displays everything in a readily visible way. My idea was to use foot switches for the input so it would be easy to provided the needed hit/miss inputs without having to break out of a shooting rhythm. So, I jumped up on Thingiverse and found a neat, rugged footswitch by ‘vandenmar’. I needed two switches, so I modified vandenmar’s design by adding an additional cable routing trench out to the other side of the switch (so the switch cable can be routed in from the left or right-hand side of the switch).

My very own indoor basketball court (with a few minor restrictions…)
Nice, rugged footswitch design by vandenmar on Thingiverse
The 12 mm switch used here is available from Adafruit

Here’s a photo of the Arduino switch contoller

After getting all the pieces together, this is how it looks in my garage. The red footswitch is for ‘makes’ and the blue one is for ‘misses’.

red/blue footswitches, with cable to UNO and laptop in the background

This setup worked pretty well, but it still wasn’t quite ready for prime time. The UNO & breadboard were, well, breadboards, and not very mechanically robust. I was afraid I would spend more time repairing the breadboard than I would actually shooting, so I decided I needed to move from a breadboard to a more finished project. In addition, the Windows program I was using to display stats needed some work, so both sides (Windows and Arduino) needed some TLC.

I happened to have a Sparkfun Pro Micro module laying around in my parts bin, so I decided I would change out the UNO for the much smaller Pro Micro. With only two pushbutton switches and a Red/Green LED, the Pro Micro has plenty of I/O for the project. Here’s the Pro Micro version of the hardware layout.

So then I opened up my trusty Open SCAD ’rounded box with lid’ script and printed up a translucent enclosure, shown below

Sparkfun Pro Micro translucent enclosure. Photo above shows the ‘Make’ green LED illuminated

Next I updated the Windows program to show Makes, Misses, Percentage makes, and number of shots made in a row, along with the longest run of made shots for this session, as shown below

And here is the ‘final’ setup in my garage:

The two footswitches are shown at bottom left, with the Pro Micro enclosure hanging down from the laptop.

Here’s the schematic for the Sparkfun Pro Micro setup

And here is a short video showing the system in action.

At 0:43 into the above video you can see the green ‘Make’ LED illuminate in the background when I pressed the red ‘Make’ footswitch, and at 1:25 you can see me pressing the blue ‘Miss’ footswitch.

Stay tuned!

Frank

Solving the Teensy VL53L0X Array Controller Reset Problem

Posted 16 November 2020

Back in May of this year, I converted Wall-E2, my autonomous wall-following robot, from using HC-SR04 ultrasonic ‘ping’ sensors to VL53L0X infrared time-of-flight sensors for left & right (and now rear) distance measurement and obstacle detection, as described in this and follow-on posts. Since then, I have been successfully integrating the new sensing capability into Wall-E2’s wall-tracking and obstacle avoidance algorithms, as described in this post among others.

In recent ‘sandbox’ runs, however, I started to notice that the VL53L0X controller (a Teensy 3.5) wasn’t always providing proper distance measurements. Sometimes it would return ‘-1’ for some or all seven measurements. Eventually I figured out that the problem only occurred when I restarted the main controller via the wireless serial connection; when I restarted by cycling the power, VL53L0X measurements were always proper. After looking into this a bit, I realized that the problem occurred because the VL53L0X array controller wasn’t being restarted when the main controller was, except when everything was power cycled.

So, I needed a way to ensure that the VL53L0X array controller got restarted, even with a serial-port reset of the main controller. The Teensy 3.5 actually has a RESET function exposed on a pin pad (although internal to the PCB, not on the periphery) so I added a pin to this pad, and connected it to the wire formerly used as the ‘left ping’ control line. Then I modified the setup code to pull this line LOW for a few 10’s of milliseconds and then back HIGH again, to restart the Teensy.

To test the modification, I modified the main controller code to send a HIGH to an unused digital pin as the first instruction in setup() and set that pin back LOW again as the last instruction. Immediately after setting this pin high, the RESET signal is sent to the Teensy. The Teensy program was modified to set an unused pin HIGH at the start of it’s setup() program, and LOW at the end. By monitoring these two pins with my wondrous Hanmatek DOS1102 DSO (see below) I was able to definitively confirm that the Teensy restarts every time the main controller does – yay!

Yellow trace is main controller setup() timing, blue is Teensy VL53L0X array controller setup() timing

In the above scope photo, the horizontal scale is 1 sec/div. The yellow trace shows the main controller setup() function timing, and the blue is the Teensy VL53L0X array controller setup() function timing. The Teensy gets reset about 500 mSec after the main controller setup() function starts, and it ends about 5.5 Sec later, about 500 mSec before the main controller setup() function ends. The relative timing shown above is the same whether the main controller is restarted via a power switch cycle or a serial port re-open restart.

Stay Tuned,

Frank

Wall Tracking Trials Using Office ‘Sandbox’ Part I

Posted 12 November 2020

Back in October I added a TIMER5 timer interrupt to my autonomous wall-following robot (WAll-E2) code to manage sensor updates. Since then I have made the timer interrupt the sole timing source for all sensor and tracking updates, and upped the update rate from 5Hz to 10Hz. In addition, I’ve been making some improvements to Wall-E2’s obstacle detection/response abilities, and this post describes the results of these enhancements.

Wall-E2’s job is to autonomously track walls forever. This implies the ability not only track walls, but to deal with obstacles as they occur, and recharge its batteries at one or more provided charging stations as needed. Wall-tracking per se has been the subject of several previous posts, and is now reasonably well managed using the ‘find parallel’ technique described here. This post deals with the effort to detect and respond to obstacles as they occur. Here’s a recent run in my office ‘sandbox’

In the above telemetry printout, the first obstacle encounter occurs at 7.65 sec, corresponding to about 4 sec into the video. The obstacle is recognized at 18 cm, well inside the desired offset distance of 30 cm. I believe this occurred because the robot had just started turning back toward the near wall with a target steering value of -WALL_OFFSET_TRACK_SETPOINT_LIMIT (-0.3, the maximum toward-wall steering value) which meant that the normal forward obstacle detection limit of WALL_OFFSET_TGTDIST_CM (30cm in this case) wasn’t in force and the backup limit of MIN_FRONT_OBSTACLE_DIST_CM (20cm in this case) triggered instead. This causes the following code block to execute:

As can be seen in the above code snippet, this causes the robot to make a 90º ‘spin turn’ to the right, and then restart wall tracking.

At about 12.6 sec (about 10 sec into the movie) we see it detect the upcoming wall at about 30 cm (due to a bug in the code, the printed values are incorrect). This causes the following code block to execute:

This code executes a 90º ‘step turn’ (identical to a ‘spin turn’) to the right, and drops back into wall tracking mode.

At about 16 sec into the movie and 20 sec after program start, the robot again detects an upcoming obstacle at about 30cm, and again executes a 90º ‘step turn’ to the right to follow the new wall.

About 1.5 sec later, the robot detects one of the chair legs (I think it was the one nearest the wall in the movie) and tries to get away using another 90º ‘spin turn’, but then exhibits some abnormal behavior. When it attempts to find the parallel orientation to the new (non-existent) wall, it exits RotateToParallelOrientation(Left) with SteeringVal = -79.86, a very strange result. I believe this is because Wall-E2 detected the ‘stuck’ condition while it was attempting to complete the parallel orientation procedure, in this ‘while’ loop

So, it exited abnormally, thus the odd SteeringVal number, and then re-detected it in the main tracking loop because the front distance history array isn’t re-initialized after the first detection. This, apparently, is a ‘feature’, not a bug – who knew! ;-).

After the second ‘stuck’ condition detection, the robot attempts to disengage using the ExecuteStuckRecoveryManeuver(), which, in this case tries to back up and then execute an ‘end-around’ maneuver to get past the chair leg. It finished the backup portion of the maneuver successfully with 23cm remaining rearward, and then executed a 90º ‘spin turn’. Then it went forward 21cm using the front distance sensor (not shown in the video), and halted when I took over manual control.

All in all, this was a very successful ‘sandbox’ run. Lots of good data with clear indications of where things are working well and where things need to be modified/fixed.

  • A bug in the telemetry display code for the ‘Wall Offset Limit’ detection printout (fixed).
  • In the situation at 7.65 sec where the obstacle detection occurred at 18cm vs 30cm, the robot should recognize that it needs to back up to the wall offset target before making the spin turn (done).
  • And, of course, porting all this new stuff to the right-side tracking sections

16 November 2020 Update:

Tonight I got the first cut done at porting the TRACKNG_LEFT algorithms over to the TRACKING_RIGHT case, and made what appears to be a successful right-side sandbox run, as shown in the following short video

And here is the telemetry from the run:

Here’s an Excel plot of the Right side center distance and L/R motor speeds vs time.

Comparing the times from the video and the telemetry, it appears the video time is about 3-3.5 sec lower than the telemetry values. In the video, Wall-E2 detects the first upcoming wall at about 9 sec, and this corresponds with the telemetry at 12.358 where the wall is detected with front distance of 19cm. The reason the wall didn’t get detected earlier is the robot was currently tracking back toward the wall with a steering value of -0.3, and this causes the wall detection value to be reduced to suppress false positives.

The robot then takes 2 sec to back up to 33 cm and turn 90 deg CCW, and then it starts tracking the right-side wall again. It detects the next wall at 17.1 sec (14 sec in video) and 30 cm (the steering value at that point was 0.10, so no reduction in upcoming obstacle detection distance). Because the detection occurred at 30 cm, the robot doesn’t need to back up; it just makes another 90 deg spin turn CCW and starts tracking the right-side wall again. The last segment clearly shows that Wall-E2 is capable of tracking to and capturing the desired offset of 30 cm.

All in all, a very successful right-side sandbox run.

Stay tuned!

Frank

Adafruit DS3231 Module vs generic ZS-042 Module

Posted 30 October 2020,

Back in May of 2018, well over 2 years ago, I posted about adding an Adafruit DS3231 RTC module to Wall-E2, my autonomous wall-following robot project. This addition went swimmingly until about 6 months later in September of 2018 when I posted to the Adafruit support forum, saying that I was having trouble with the ‘lostPower()’ function return values; it seems like it was returning FALSE (no power loss) even though I had removed the battery and turned off the power to the system. As described in the post, I eventually gave up on this in February of 2019after discovering that I was getting radically different results when I used a different Arduino Mega and two different Adafruit DS3231 modules. Eventually I wound up in the situation where both DS3231 modules appeared to work correctly no matter what I did – strange!

Fast-forward to the present. In the process of adding a rear distance sensor to Wall-E2, I once again ran across the same anomalous behavior by the Adafruit DS3231 RTC module; The ‘lostPower()’ function stubbornly refused to declare a loss of power, even with the battery removed and the main power turned off. After a lot more investigation, including a dedicated test program and some more back-and-forth on the Adafruit forum, I (and the Adafruit support guys) still was unable to resolve the issue.

In desperation, I fished a generic ‘ZS-042’ DS3231 RTC module out of my parts bin and started working with it, thinking maybe I could use it to get a clue why the Adafruit modules were failing. As it turned out, the ZS-042 module worked perfectly from the get-go with the Adafruit RTC library, and the ‘lostPower()’ function correctly returned TRUE when main power was lost with the battery removed, and FALSE when power was lost but the battery was in place.

Here are some photos of the Adafruit and ZS-042 modules:

As can be readily seen, the ZS-042 module is considerably larger, due almost entirely to the decision to use the LIR-2032 Li-ion rechargeable cell instead of the smaller non-rechargeable CR1220 type. Other differences:

  • The ZS-042 module includes a power LED. This LED illuminates when main power is available on the VCC pin, but not when the RTC module is running from the battery
  • The Adafruit module exposes the RST (reset) line. If you need this, the ZS-042 won’t work for you.
  • When used with the supplied LIR2032, the battery is recharged and/or float-charged from VCC through a 1N4148 diode. This works fine if VCC is 5V, but doesn’t work at all if VCC is 3.3V.
  • The 32KHz output is open-drain, without a pullup on both the Adafruit module, but the ZS-042 module has a pullup to VCC. What this means in practice is you can’t easily monitor this output when operating off the battery, so it is hard to tell if the RTC module is still running. My solution to that was to attach a completely separate power supply to the 32KHz output via a 10K pullup resistor. The Adafruit module needs this to see the 32KHz output for both battery power and mains power. The ZS-042 module only needs it for battery power.
Adafruit module with temporary 10K pullup resistor installed. Note clock scope trace in background
ZS-042 module with main power applied to USB connector. 32KHz output is present even without an external pullup
Same setup but with USB connector removed. Now need a 10K external pullup to an external supply to monitor 32KHz clock

So, there you have it. The Adafruit module is smaller, has an additional output (RST) and uses a smaller, non-rechargeable CR2210 button cell. However, in my testing and use over a two-year period, I came to distrust its ability to reliably detect and report on complete power loss situations that would require a forced date/time update.

The ZS-042 module is significantly larger due to its use of the rechargeable Li-ion LIR2032 button cell, and doesn’t have the RST output. It is also considerably cheaper and widely available. Lastly, it appears to more reliably report complete power loss occurrences, allowing proper date/time updates.

For my money, I have replaced the Adafruit DS3231 module in my system with the ZS-042 module. In practice, complete RTC power failure events are very rare, so in all probability there would be no appreciable difference between the two choices. However, for those applications (like mine) where you really do want to know if the RTC loses its sense of time, I don’t feel comfortable with the Adafruit module.

If anyone has a better understanding of the Adafruit module, please feel free to comment.

30 October 2020 Update

I replaced the Adafruit DS3231 RTC module on my Wall-E2 autonomous wall-following robot with the ZS-042 DS3231 RTC module. As shown in the following photos, I had to re-arrange the I2C FRAM and I2C MPU6050 IMU modules in order to make room for the significantly larger ZS-042 module.

Original layout. Adafruit RTC module on left, MPU6050 IMU in center, FRAM on right
Straight replacement not going to work – oops!
After re-arrangement

Stay tuned,

Frank

Adding a VL53L0X Rear Distance Sensor to Wall-E2

posted 24 October 2020

After documenting left-side wall-tracking success with Wall-E2, my autonomous wall-tracking robot (see this post and this post), I started thinking about improving Wall-E2’s obstacle avoidance performance.

Wall-E2 can encounter several distinct obstacle situations during wall tracking operations. In the simplest case, Wall-E2 approaches an upcoming corner while tracking a wall, and needs to know how to transition from tracking the current wall to tracking the upcoming wall. A more difficult situation arises when Wall-E2 is ‘stuck’ – prevented from moving forward by an obstacle that isn’t detected by its front LIDAR distance sensor; a shoe, or the curved foot of a coat rack. A third situation arises when Wall-E2 encounters an obstacle that just wasn’t there a second ago; a cat or a human foot or a bag of groceries.

In the simple wall-to-wall transition case, all Wall-E2 has to do is make a right-angle turn away from the current wall and start following the next wall; this was successfully demonstrated several times in the previous posts. This maneuver utilizes a ‘spin-turn’ technique intended to minimize the backward movement of the robot while turning. This is done to prevent Wall-E2 from backing into the currently-tracked wall while attempting to turn toward and track the upcoming wall. Unfortunately, this maneuver is not always successful, whereupon Wall-E2 tries to climb backwards up the current wall, often with disastrous results.

In the ‘stuck’ case, Wall-E2 has to first recognize that it is no longer moving forward (or in any other direction for that matter), and then figure out what to do about it. Detection is accomplished by looking at the variance of front distance measurements over time; the ‘stuck’ condition is declared when the front-distance variance falls below a pre-determined value. A typical ‘stuck’ recovery maneuver is to back up slightly, and then make a right-angle turn away from the wall currently being tracked. This maneuver, while usually successful, has the same problem as the simple wall-to-wall transition; it sometimes results in the same backward-up-the-wall climb, with similar results.

The ‘suddenly appearing obstacle’ case can be handled in a manner similar to ‘stuck’ detection, but bypassing the variance measurement stage. and the resulting avoidance maneuver is similar to the ‘stuck’ case

Wall-E2 currently handles all of the above cases fairly well, except when it backs into something while maneuvering to avoid the detected obstacle. So, my challenge was to find a way to avoid running into something while backup up from something else. The easy answer to this problem was to add a rear-distance sensor to Wall-E2, and then use that information to modify obstacle-avoidance behavior as necessary.

During the changeover from ‘ping’ style distance sensors to left and right 3-element arrays of VL53L0X time-of-flight sensors I learned quite a bit about the care and feeding of the VL53L0X, and also wound up with quite a few spares. So, I took one of the spares and installed it on the rear ‘bumper’ plate on Wall-E2, as shown in the following photo:

GY-530 VL53L0X mounted on rear ‘bumper’

Since the 2nd-deck Teensy 3.5 was already handling both 3-element VL53L0X arrays, I simply added the rear sensor to the left-hand array ‘Wire2’ daisy-chain, and connected its XSHUT pin to Teensy pin 8. Then I modified the Teensy’s program to initialize and poll the rear sensor in the same manner as all the others, and tested it to make sure it was responding properly to rear-aspect obstacles.

The next step is to incorporate rear-aspect distance information into the various obstacle avoidance algorithms in the main program.

‘Stuck’ case:

The ‘stuck’ case by definition occurs when the mathematical variance of the last 3-5 seconds of forward distance measurements fall below a set value, indicating that the robot is no longer moving forward or backward. When this happens while wall tracking, the robot has to decide what to do. The current response is to back up for 1 second at half speed, execute a 90 deg ‘spin turn’ away from the nearest wall and then go back to normal operations.

I think I would like to enhance this algorithm as follows:

  • If the measured front distance is less than MAX_FRONT_DISTANCE_CM (currently set at 400 cm) by at least STUCK_BACKUP_DISTANCE_CM (currently set at 25), then back up by STUCK_BACKUP_DISTANCE_CM using front distance measurements as the primary means of terminating the backup maneuver. If the front distance measurement cannot be used, but the rear distance measurement is valid (less than MAX_REAR_DISTANCE_CM, currently set at 100), then back up using the rear sensor measurement. If neither measurement is available, then revert back to a 1 second half-speed movement. In all cases, use the rear distance measurement to prevent ‘reverse wall climb’ by stopping the motors if the robot gets too close to an obstacle while backing up.
  • Execute a ‘spin turn’ away from the nearest wall – this is the same as the current algorithm.
  • Execute a ‘rolling turn’ back toward the original direction of travel. This should offset the robot further away from the nearest wall, and hopefully allow it to bypass the obstacle.

Left Side Wall Tracking Success With VL53L0X Array, Part II

Posted 10 October 2020

After the left-wall tracking success described previously in this post, I made some more adjustments and also set up a ‘ tracking sandbox’ in my lab to test Wall-E2’s ability to detect & respond to upcoming obstacles. Here’s a short video showing Wall-E2 in action

Tracking run demonstrating obstacle avoidance maneuvers

Here’s the raw output from the run:

And here is an Excel plot of just the movement sections of the above, highlighting the avoidance maneuvers.

left-side wall distances are shown in mm, while the front distance is shown in cm. Note 1-2 sec gaps during turns

Comparing the Excel plot to to the video, the front distance plot shows a monotonically decreasing value and then a large jump after each obstacle avoidance turn. It appears that the robot acquires and tracks the 30cm offset target successfully on the first wall, but doesn’t do as well on the second one. It was much more successful on the third wall. The plot for the last wall is only about 2 seconds long.

All in all, this looks like a pretty successful run for Wall-E2. It tracked three different walls (the fourth wall was too short to track) and successfully avoided obstacles three times – woo hoo!

12 October 2020 Update:

On the above ‘sandbox’ run, I noticed that at the end of the third leg at about 14 seconds into the run, the ‘spin turn’ at the white foam core wall wasn’t a ‘step turn’, but a ‘backup and turn’ triggered by the front distance going below the front obstacle limit of 20 cm, rather than the tracking obstacle clearance limit of 30 cm. Here are two output lines that illustrate the difference

and

In the video, these events are at about 7 & 14 seconds respectively. From this I came to the conclusion that at least the front distance wasn’t getting updated enough to keep the robot from getting too close to the obstacle before it realized there was a problem. At the time, the update rate for the system was set at 5Hz or 200 mSec. If the robot is travelling at 50 cm/sec, it means that it will travel 10 cm between distance updates – ouch!

So, I changed the timer interrupt timeout value for a 10Hz rate, and ran the ‘sandbox’ run again. This time when I looked at the output I could see that each leg terminated with something like

and it was clear that the updates were happening about every 100 mSec. Here’s the output:

and a short video:

And an Excel plot showing the left wall and forward distances progressing through the run.

Note that the front distance is shown in cm, while the left wall distances are shown in mm

At this point, I’m pretty happy with Wall-E2’s new-found wall tracking superpowers, at least for the left wall case. Now I need to port the V7 left-side-only code back into the main program and also port it to the right wall case.

Stay tuned!

Frank

Left Side Wall Tracking Success With VL53L0X Array

Posted 05 October 2020

This post describes the successful left-side wall-tracking performance of my re-motored, re-wheeled, and re-sensored robot. Back in January of this year I was able to demonstrate reasonable wall tracking performance with my two-wheel robot using the old HC-SR04 ‘Ping’ sensors. However, I still wasn’t able to consistently track and maintain a desired wall offset, the main goal in this project stage

Since January, I have made the following changes to my larger four-wheel robot:

With all the changes, I had kind of lost track of the ultimate goal, which is to have the robot follow the nearest wall at a specified offset distance. All of the above updates were intended, in one way or another, to facilitate that goal, but I hadn’t yet got the robot to actually perform to expectations.

To help clear away some of the fog, I created a new version of the operating software that was pared down to just what was required to track the left wall, and nothing else. The idea was to work out all the bugs for offset capture and subsequent wall tracking with just the minimum required software, and then incorporate the modified code back into the mainstream software.

At first I was working with a 4-stage process;

  • find the parallel heading to the selected wall
  • drive at an angle toward the desired offset distance
  • when the offset distance is obtained, turn parallel to the wall again
  • track the wall at the desired offset

However, I found that the when the robot started off outside the desired wall offset, the second ‘turn to parallel’ operation took up too much space, both in terms of wall offset distance, and distance along the wall. By the time the second ‘find parallel’ operation was completed, the robot was usually much too close to the wall for effective offset tracking, meaning the entire 4-step process would have to be repeated. So, I eliminated step 3 in the process (the second ‘turn to parallel’ operation) entirely, and modified the wall tracking algorithm to capture the desired wall offset and track it. Instead of using the distance sensor measurements directly, I generate a ‘steering value’ proportional to the difference between the front and rear sensor measurements, and a target ‘steering value’ proportional to the difference between the desired offset and the center sensor measurement and use a PID controller to match the measured steering value to the target steering value. The effect of this is that the robot will track toward the offset at an angle, and then turn parallel to the wall and continue to track, as shown in the video below:

Left-side offset capture and track demonstration

Here’s an Excel plot showing the wall offset distance versus time for the above demonstration run.

As can be seen in the above plot, the robot starts off at about 45 cm from the wall, tracks inward to capture the desired offset, and then continues to track the desired offset even when it goes around the 45-degree bend. The code that accomplished this is posted below:

Stay Tuned!

Frank

Replacing HC-SRO4 Ultrasonic Sensors with VL53L0X Arrays Part V

I have been running some wall-tracking tests with Wall-E2 and the new VL53L0X sensor array arrangement, but have been having poor results, especially with offset capture. After a bunch of test runs, I started to think that the distances aren’t updating fast enough to keep up with the robot’s forward speed, so it runs into the wall before it knows that it has gotten too close

Looking at the Teensy 3.5 I2C Slave code that manages the sensor array, I see the following loop() code

And I get the following output:

Looking at the timestamps, it appears that a measurement cycle takes about 200 mSec, taking into account the added 100 mSec delay from the delay(100); statement. This is consistent with the default 30 mSec measurement time for a single VL53L0X, but unfortunately this is much greater than the default 100 mSec PID controller update rate.

The VL53L0X can make measurements faster, but at the cost of lower accuracy. In my case, the increased accuracy from a 30 mSec measurement time is useless if it isn’t fast enough to keep up with the robot. Searching around the net, I found this post on the Pololu support forum, dealing with just this problem. So, I modified my Teensy 3.5 I2C Slave program to use ‘continuous measurements and the shorter (20 mSec vs 30 mSec) timing budget, as follows:

with the following results:

From the above it is apparent that the new loop time is about 19 mSec for all six sensors. This is very interesting, as it implies that in ‘continuous’ mode, all six sensors run all the time, and all the readContinuousMillimeters() function does is pull the latest measurement out of a buffer.

As a quick test, I rigged up a ‘fan blade’ (piece of paper taped to a old robot wheel on a motor) as shown, and then ran the program again with the motor spinning the ‘blade’ in front of the left-side sensor array (at about 100 RPM, I think). The plot shows that the sensor response is certainly fast enough to ‘see’ the rise and fall times on the ‘fan blade’.

03 October 2020 Update

With the above results in mind, I decided to try speeding up the ‘fan blade’ setup to see if I could find out how fast the VL53L0X sensor could go. I thought I should be able to use the shaft encoder setup on the back of the motor to acquire an accurate RPM reading and convert that into ‘milliseconds/blade’ to tell how short of an interval the VL53L0X could detect. As things often happen, determining motor RPM from encoder signals turned out to be a LOT harder than I thought. After a loooonnnng side-trip into geared-motor hell, I wound up more or less disregarding the encoder feature and modified the Teensy 3.5 ‘loop()’ code to produce a direct tachometer reading, as follows:

This allowed me to directly monitor ‘effective’ RPM & obstruction frequency. So I set up the experiment using a ‘four blade fan’ as shown below, and monitored the obstruction detector output with my Hanmatek DSO

DSO Output from VL53L0X Obstruction Detection loop() code

As can be seen from the DSO screenshot, the obstruction detection pulse frequency is about 26Hz, with a period of a little over 38 mSec. So it is clear that the VL53L0X running in continuous mode with a timing budget of 20 mSec can easily produce readings every 30 mSec or so.

04 October Update:

The next step was to see if the ‘VL53L0X fast/continuous’ code running on the Teensy VL53L0X sensor array manager would allow the main robot MCU to fetch distance readings faster. To do this, I uncommented the #define DISTANCES_ONLY //added 11/14/18 to just display distances in infinite loop line in my program to eliminate all code except a short loop displaying distances. Then I took measurements with my 4-blade ‘fan’ running in front of the left-front sensor. I ran the motor voltage up to the point where the Teensy’s blade sensor output was showing about a 20Hz blade rate, and got the following output from the main MCU ‘DISTANCES_ONLY’ loop.

From the above, it is clear that the main MCU code can ‘see’ sensor output changes occurring at 20 Hz (50 mSec period). This should be fast enough to keep up with the physical movement of the robot during offset capture and wall-tracking activities.

In theory, I won’t have to do anything to the main MCU code to enjoy the faster response

Stay Tuned!
